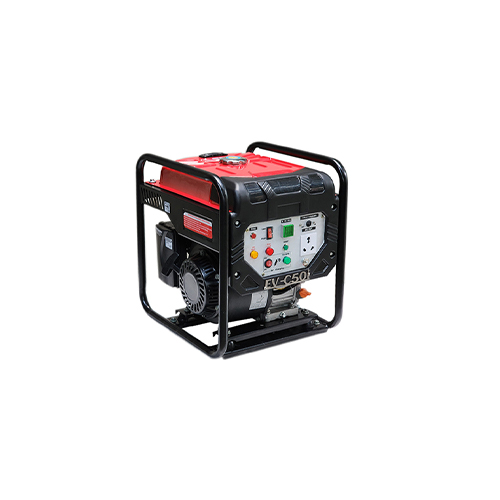

Portable EV Charger- EV-C50i
Application :
- Himalayan Power Company recently launched
- Max AC. Output VA: 5000
- *Rated AC. Output VA: 4500
- Starting System : Recoil Start
- Fuel Consumption : Petrol 1.35 ltr/hr, Approx.
- Run time : 4.5 Hrs.Approx
- much awaited EV- Charger models for Eclectic Cars. Currently company offers: 3.5 KW Charger EV-35i & another model EV-50i, which is 5KW model. HPM Company also has plans in futures to launch few more high-power ev-charger models for electric buses etc.

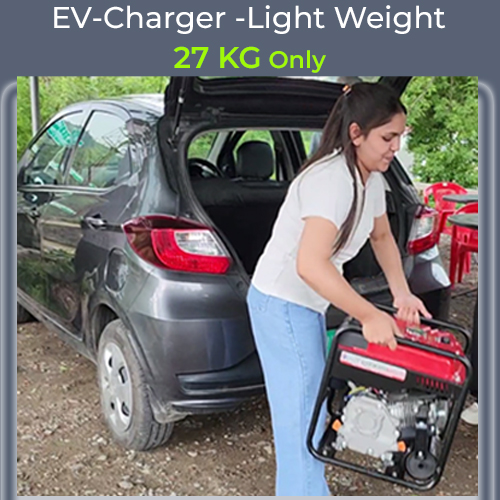

- These car EV-Charges are very comfort & light weight just 27 kg. only & hence very easy to carry to anywhere.
- As all of us know that EV-Vehicles facing a major challenge only due to lack of EV- Charging ifra, because this type of Ifras needs huge investments, so still we have to wait 5 to 10 years to see charging stations everywhere.
- Now with the introduction of HPM’s new series of portable EV-Charges, now ev-car owners can drive unlimited & fearlessly. Now they have portable charging station all time with you, charge your car anywhere anytime.
This Premium product is Outcome of excellent hard work of HPM's R&D Engineers. Himalayan Power is more than35 years old Company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- *Max AC. Output VA: 5000
- *Rated AC. Output VA: 4500
- Starting System : Recoil Start
- Fuel Consumption : Petrol 1.35 ltr/hr, Approx.
Generator & Alternator:
*Max AC. Output VA : 5000
*Rated AC. Output VA : 4500
Rated Current Amps : 19.5
NFB Amps : 19
AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
Invertor : 100 KHz, IGBT Based Digital Invertor – 5.5 Kw
Engine:
Model : HM172P
Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
Maximum Power : 8 HP @ 3600
Bore x Stroke : 72x58 mm
Displacement : 240 cc
Starting System : Recoil Start
Governor : Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load)
Fuel : Petrol
Fuel Tank Capacity : Petrol – 6 Ltr.
Fuel Consumption : Petrol 1.35 ltr/hr, Approx.
Lube. Oil Capacity : 600 ml.
Lubricating Oil Consumption : 2.5 gm./Hr.
Sound level (Db) (from 1 meter) : <86Db
Continues Running (With One Filling) : 4.5 Hrs. Approx
Panel & Other Standard Features:
Multifunction Digital Meter & Indicator : Digital Control Panel (V, Hz, Amp)
Oil Alert System : Yes
Over Load Indicator : Yes
Fuel Level Gauge : Yes
AC On /Off, Overload Protection (NFB) : Yes
Electronic Over Load Protection : Yes, Inbuilt with Inverter
Packing:
Weight Appprox (Kg) : 27 Kg
Dimension LxWxH (mm) : 375 x 440 x 465 mm
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation.
