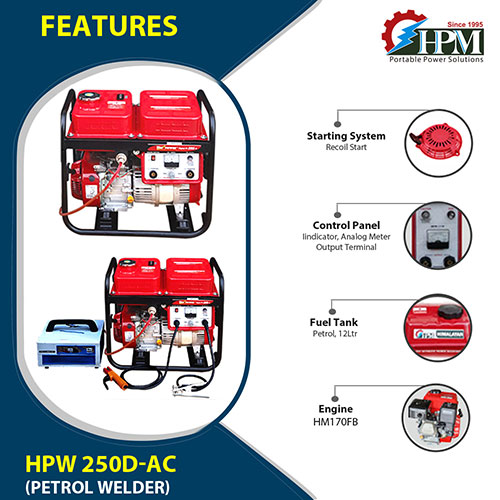

200 Amps, Petrol Welding Generator, 1.2 KVA AC Output, Model HPW-250D-AC, Recoil Start
- DC Welding Output: 50 to 200 Amps
- Electrode Dia.: 2.6mm to 4mm (E 7018)
- *AC. Output VA: Inverter 1.2 KVA
- Starting System : Recoil Start
- Fuel Consumption: Petrol 1 Ltr./Hr. Approx
- Run time: 12 hr. Approx
Special Highlight And application:
- World’s Most Portable, Professional & Low Cost Arc Welding Machine Suitable for High Class Welding Including Structural Welding Rods 7018 Size 4mm Electrode.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- Maximum Output (Duty Cycle 60%): 200 Amps.
- Welding Output at 100 % duty Cycle :175 Amps
- Working Voltage: 20v to 32v
- Open Circuit Voltage : 70 Volt (Maximum)
- Current Regulation Amps : *75-200
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode diameter : 2.6 mm to 4.0 mm (E 7018)
- Alternator Type :Multiphase, Brush less with Rear Earth Magnet Rotor
Engine
- Model : HM170FB
- Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
- Maximum Power :7.5 HP
- Bore x Stroke : 70x58
- Displacement : 223cc
- Starting System : Recoil Start
- Ignition System : TCI (Transistor Control Ignition)
- Fuel : Standard Petrol
- Fuel Tank Capacity :12 Liters
- Fuel Consumption # Ltr./Hr. (at 60 % Duty Cycle) : 1.0Ltr./hr.
- Continuous Operating Hour : 12 hr.
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.

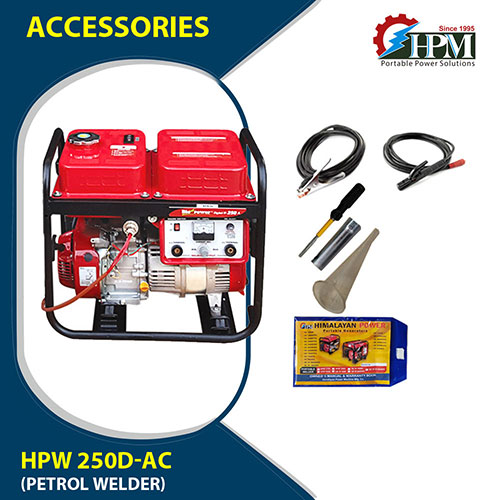

Standard Accessories
- Tool Kit : 1 Set
- Welder Holder : 1 Set
- Earthing Clamp with 3Mtr. Cable : 1 Set
- Oil Funnel : 1 No
- Owner’s Manual : 1 No
Panel & Other Features
- Aux. AC Output 230 Volt - 50 Hz : Invertor 1200 VA – 220 Volt AC, 50 Hz (Optional)
- Overload Protection (NFB) : Yes (Inverter)
- Power Indicator : No
- Ampere Meter : Yes
- Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
- Fuel Level Gauge: Yes
Size & Weight
- Dimension LxWxH (mm) :600x450x530 mm
- Dry Weight (Kgs.): 50 Kgs.
*For low welding current 50-75 Amps use “Sheet Metal Welding Attachment” (Optional at Extra Cost)
Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification’s can change without any prior information.
