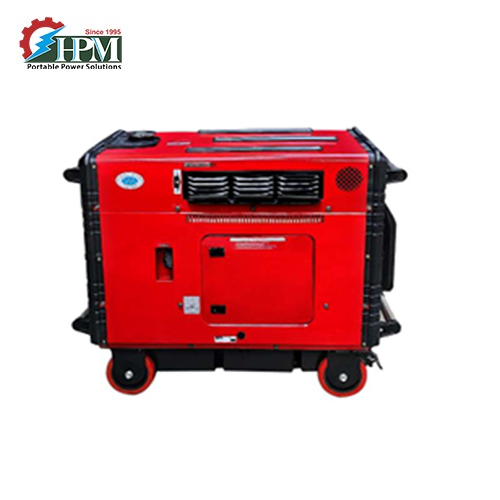

12 KVA SILENT PORTABLE PETROL GENERATOR WITH LATEST INVERTER TECHNOLOGY MODEL- Olympias GE-3P-12500is
- Max AC Output VA - 12000
- Power factor : 0.8
- Rated Current Amps : 43
- Fuel - Petrol
- Starting System - Self Start + Recoil Start
- Fuel Consumption at 70% load - Petrol 3.7 ltr/.hr Approx
Special Highlight :
This is a most powerfull 12 KVA Portable Generator with Latest Inverter Technology. This generator gives 2 Power Modes ie. Single Phase-230 Volt & 3 Phase-400 Volt Output for Industrial UseThis is a Silent Type Portable Petrol Generator & Can also Run On LPG/PNG Fuel for Cheaper Running CostThis Portable Generator Capable of Running 4-1.5 Ton Air Conditioner at a time Or 3-1.5 Ton Air Conditioner + Other Loads
Application :
For Running 1.5/2 Ton Air Condition, Office Use, Home Use, Small Institution, Computer Center, Nursing Home School, Cyber Cale, Banks, RTV Vans, Ambulances, Food Vans Vanity Van & other Vehicular Applications. 3 Phase Motor & Industrial Load Etc.
Product Information
- AC Power Output VA :12000
- Power factor : 0.8
- Rated Current Amps : 43
- Rated AC Output VA : 10000
- NFB Amps 2 nos :40 Amps, 16 Amps
- Rated AC. Voltage & Frequency : 230 Volts± , Single Phase 50 Hz ± 0.2
- 3 Phase Rated AC Output VA: 10000 VA
Alternator
- Alternator : Multi Pole (12 pairs) Rare Earth Maganeti Alternator
- #Alternator Max Capacity : 50 Amps
Engine
- Model : HM 194 PY
- Type : OHV25°Inclined, Single Cylinder, 4 strokes, S.I, Forced Air
- Bore x Stroke : 94x76 mm
- Displacement :527 cc
- Starting System : Recoil Start +Self Start
- Fuel Tank Capacity : 20 Ltr.
- Fuel Consumption (at 70% Load) : Petrol 3.7 ltr/Hr Approx
- Lube. Oil Capacity : 1200 ml.
- Lubricating Oil Consumption : 4.3 gm./Hr.
- Sound level (Db) : <86 Db
- Continous Running hours (with one filling ) : 6 hrs

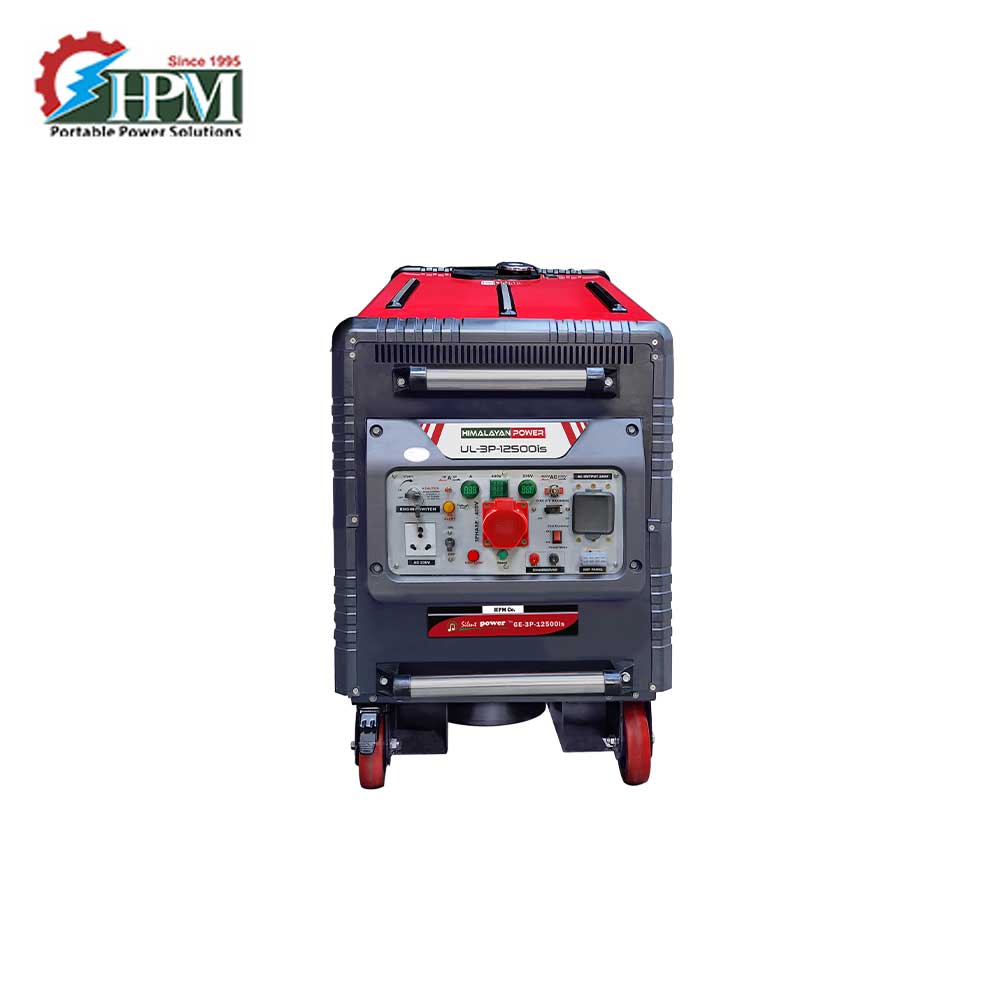

Panel & Other Standard Features
- Sound level : <86 Db
- AC Ampere Meter :Yes, Digital Amps Meters
- AC Volt Ampere : Yes, Digital Amps Meters
- AMF Panel Compatiblity: yes
- OutPut Indicator : Yes
- Fuel Level Gauge : Yes
- Overload Protection (NFB) : Yes 2 NOS
- Fuel Level Gauge : yes
- Coaster Wheels : yes
Packing
- Weight Appprox (Kg) With Battery : 140
- Dimention LxWxH(mm): 700*565*730(LxWxH)
- Battery Specification : Lithium Battery 12.8V-30Ah
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation.
