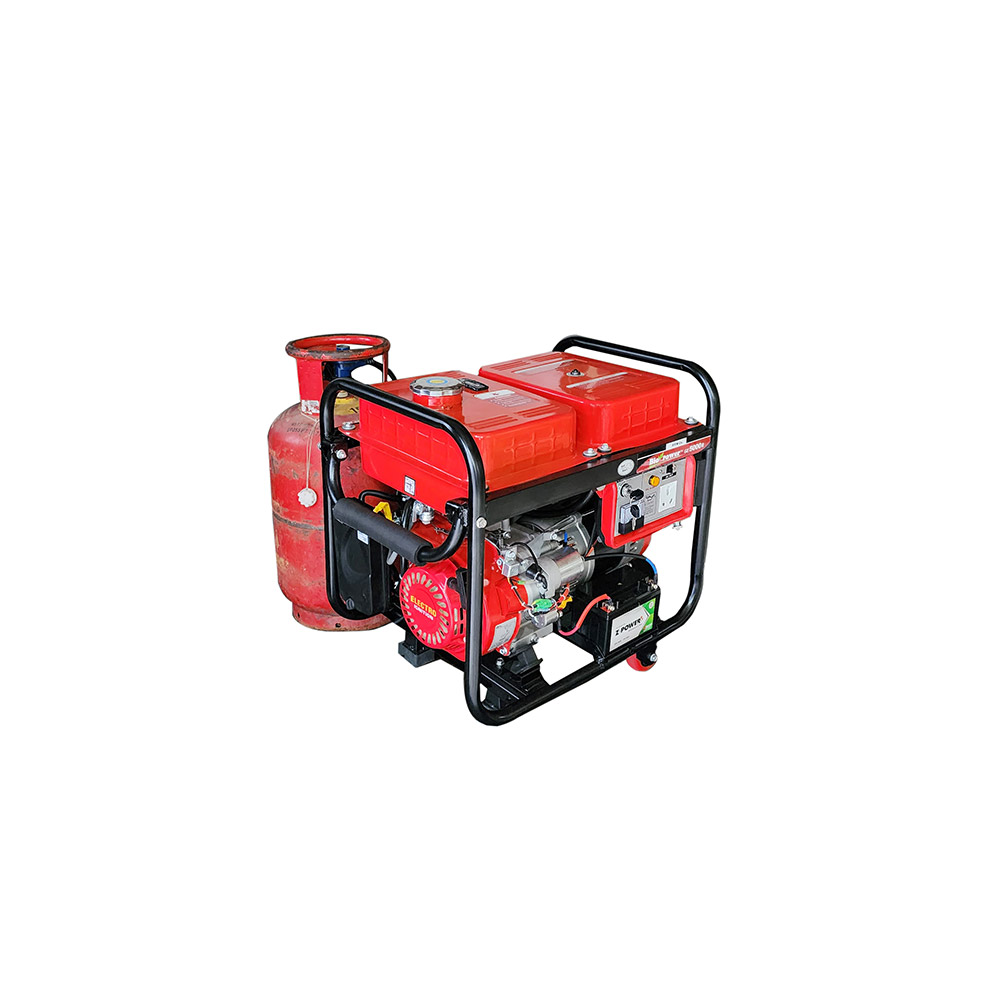

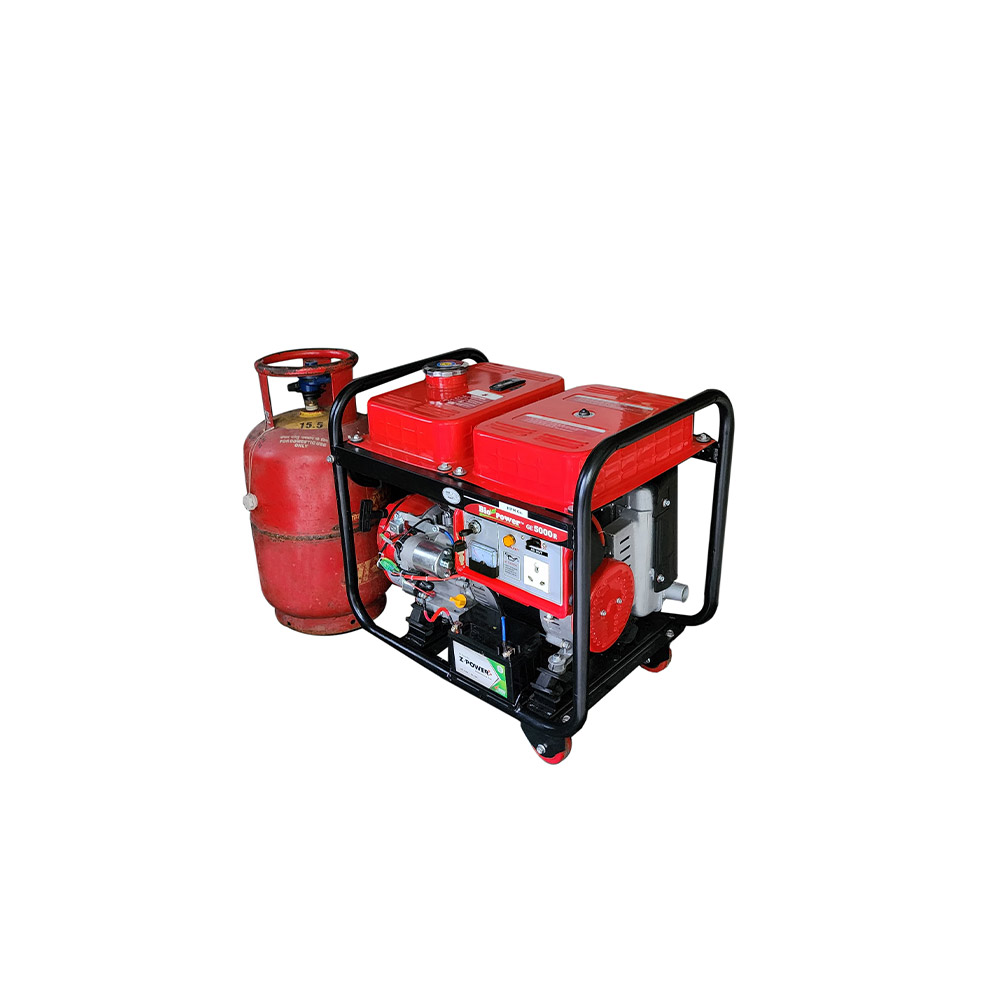

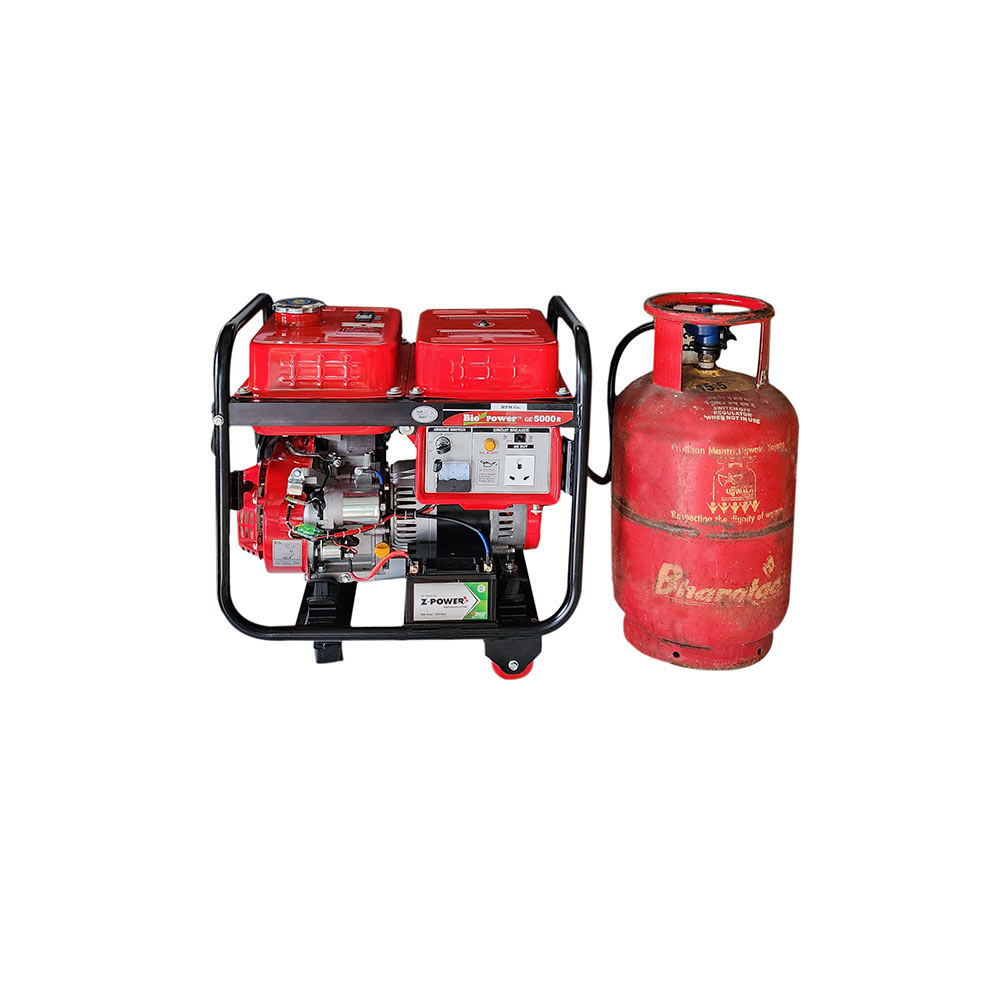

5 KVA LPG Generator , Petrol & LPG RUN, Model GE-5000R-LPG

₹69900 ₹112761

  • *Max AC. Output VA: 4500
  • *Rated AC. Output VA: 4000
  • Starting System : Recoil Start
  • Fuel Consumption : Petrol 1.5 Ltr/Hr. Approx / LPG : 800gm /Hr.
  • Run time: 8hr. Approx / > 20 hours Per LPG Cylinder

Special Highlight :

  • Low Priced, Economical running, and Light Weight Generator
  • Inbuilt LPG Kit for running on LPG Cylinder / PNG.
  • Powerful 4.5 KVA Portable Generators, Runs 1.5 Ton Air Conditioner + Other Loads.
  • General Purpose Portable Generator, suitable for household, offices, Nursing Homes & Restaurants, Banks & ATMs, Field Jobs etc.

Application :

  • Best for institutional / Bulk order Supplies, Vehicular applications, Food Vans, deep freezer / Big refrigerators, Water coolers, submersible pumps.
  • Very much Suitable for Industrial & Commercial due to ability for Overloading, for running

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • *Max AC. Output VA : 4500
  • *Rated AC. Output VA : 4000
  • Rated Current Amps : 17
  • NFB Amps : 18
  • AC. Voltage at Rated Load :220 Volts ± 10 Volt, 50 Hz, Single Phase
  • AC. Voltage at No Load: 250 Volts ± 5 Volt

Alternator

  • #Alternator Max. Current Capacity : 24 Amps.
  • Alternator : Brushless, Rare Earth Magnetic Rotor, THD 5 %, Pure Sine Wave

Engine

  • Engine Model : HM170P
  • Type : OHV25° Inclined, single cylinder, 4 strokes, S.I, Forced air cooling
  • Maximum Power : 7.5 HP @ 3600
  • Bore x Stroke : 70 ×58 mm
  • Displacement : 223cc
  • Starting System : Recoil Start
  • Fuel : Petrol + LPG
  • Fuel Tank Capacity : Petrol -12 Ltr
  • Fuel Consumption : Petrol: 1.5 Ltr./hr.,  LPG: 800 kg./hr. Approx.
  • Lube. Oil Capacity : 600 ML
  • Lubricating Oil Consumption : 2.5gm./hr.
  • Continues Running (With One Filling) : 8 Hrs. on Petrol or >20 hours Per LPG Cylinder
  • Sound level (Db) (from 1 meter) : <86Db

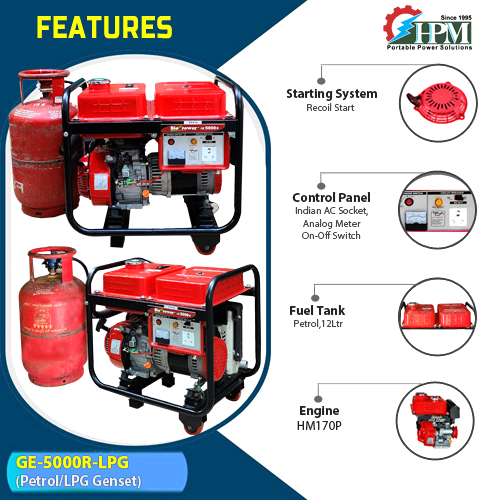

Panel & Other Standard Features

  • Voltmeter : Yes (Analogue)
  • Digital Hour Meter : No
  • Oil Alert System : Yes
  • LPG/ Gas Fuel Compatibility : Yes
  • AMF Panel Auto & Remote Start Compatibility : Yes
  • Fuel Level Gauge : Yes
  • Overload Protection (NFB) : Yes
  • Costar Wheels : Yes

Size & Weight

  • Approx. Weight (Kg) : 48.6 Kg
  • Dimension LxWxH (mm) : 607x460x610 mm

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
