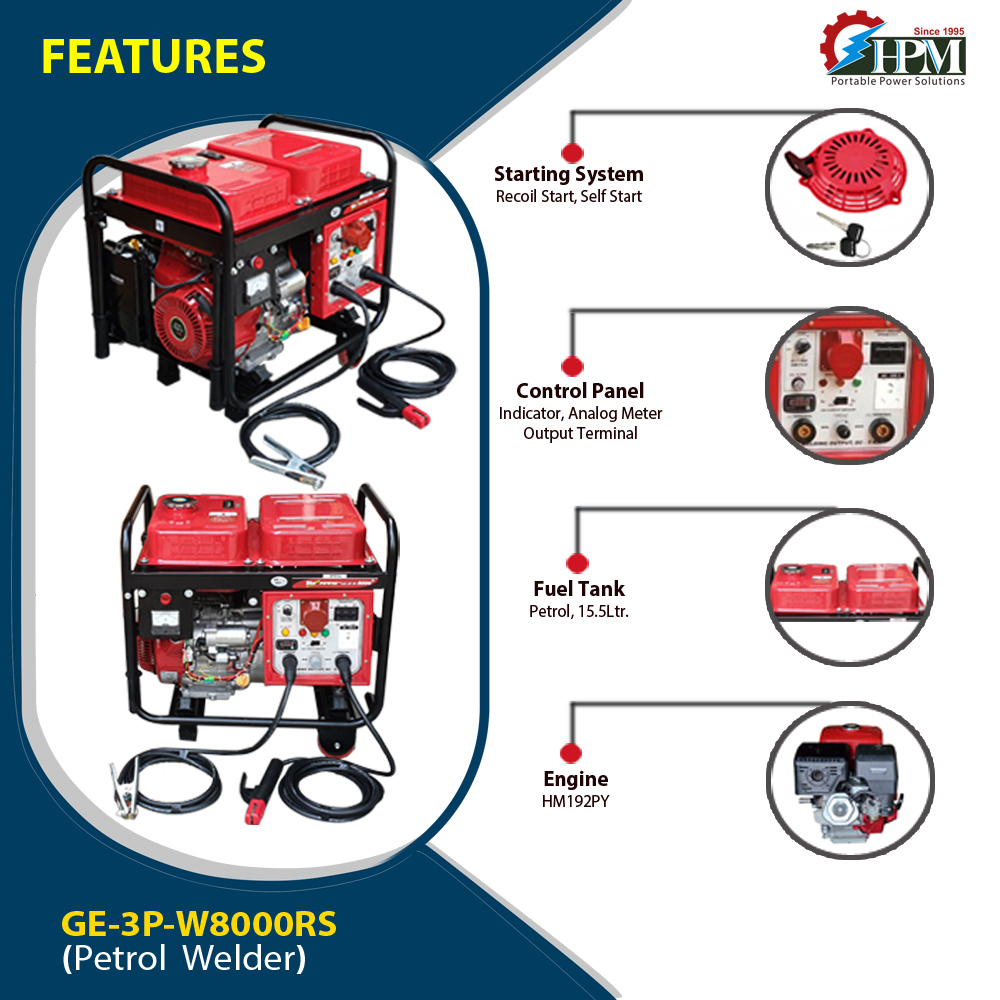

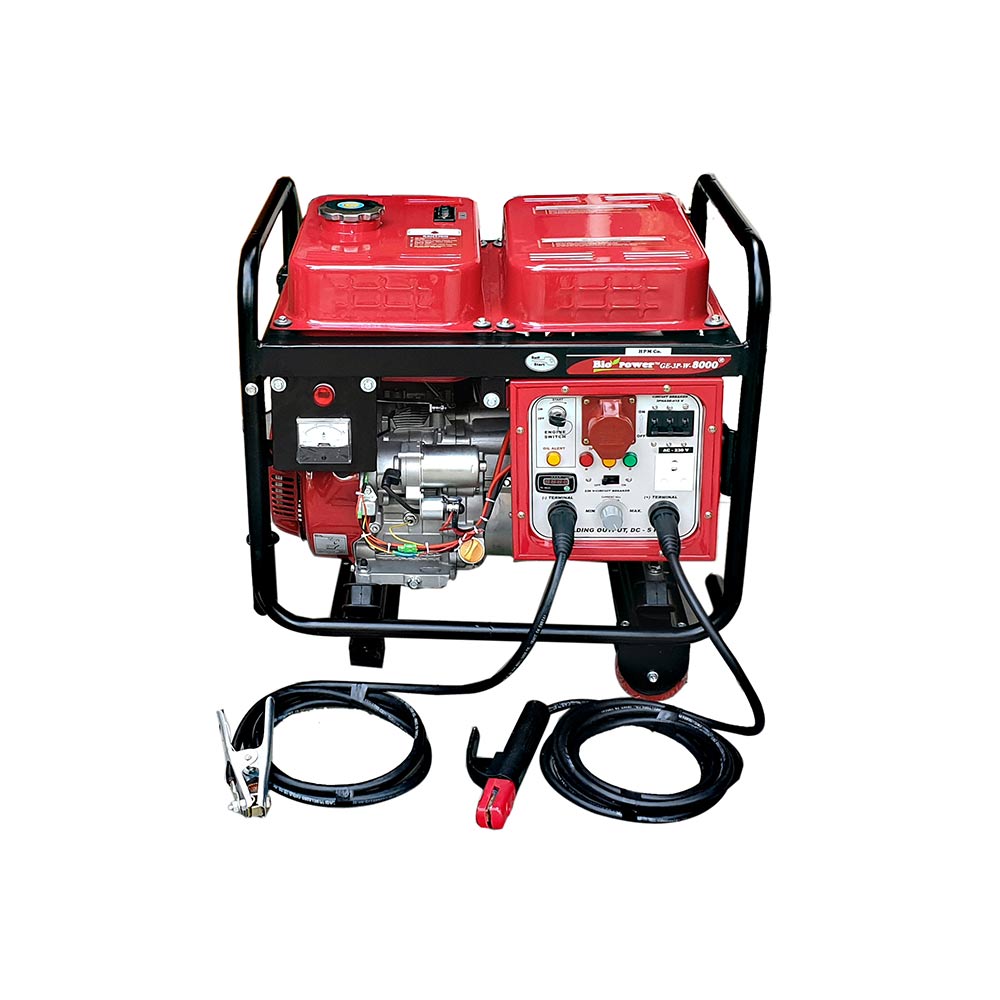

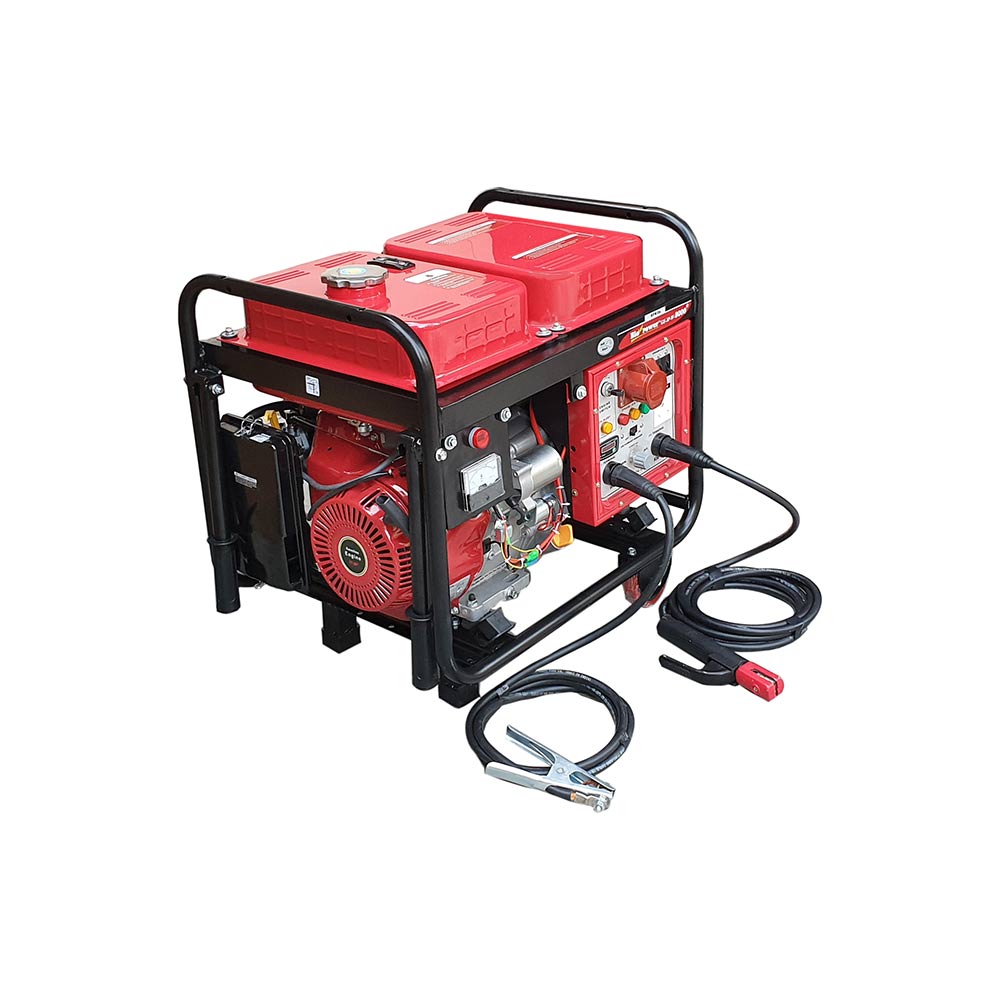

200 Amps Welding Generator 3 Phase - 6 KW, Petrol Run, Model GE-3P-W8000RS
- DC Welding Output (Duty Cycle 60%) : 200 Amps.
- Open Circuit Voltage (OCV): 65 Volt (Minimum)
- Electrode diameter : 3 mm to 5.0 mm
- AC Output (3-Phase): 7000 VA
- Max AC Output (Single Phase) : 4500 VA
- Starting System : Recoil Start / Self Start
- Fuel Consumption Ltr./Hr. : 2.0 Ltr./hr. (Approx)
- Continuous Operating Hour : Approx. 10 hr.
Special Highlights & Applications
- Portable Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Medium Welding Jobs, up to 4 mm Electrode
- In Built AC 415 Volt – 50 Hz, 7 KVA- 3 Phase
- Can run all AC Appliance including 3 Phase Motors.
- In built AC 230 volt – 50 Hz, 4.5 KVA – Single Phase. (Max)
- Because of CBCP II Norms Certified Canopy Generator Cum Welder, This is World’s Best Low Noise Generator Welder and it has High IP Rating 67
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- DC Welding Output (Duty Cycle 60%) : 200 Amps.
- Working Voltage : 20v to 35v
- Open Circuit Voltage (OCV) : 65 Volt (Minimum)
- Current Regulation : 75 - 200 Amps.
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode diameter : 3 mm to 5.0 mm
AC GENERATOR
- Alternator Type : Brushless with Rear Earth Magnet Rotor.
- AC Output (3-Phase) : 7000 VA
- AC. Voltage (3-Phase) : 415 Volts ± 10 Volts, Three Phase
- Rated AC Current Per Phase : 11 Amps. Each Phase
- Circuit Breaker (3-Phase) : 12 Amps. Each Phase
- Max AC Output (Single Phase) : 4500 VA
- Single Phase AC Voltage (No Load) : 240 Volts ± 10 V, Single Phase
- Single Phase AC Voltage (at Load) : 220 Volts ± 10 V, Single Phase
- Rated Current (Single Phase) : 17.5 Amps.
- Circuit Breaker (Single Phase) : 18 Amps.
- Frequency : 50to60Hz.
- Class of Insulation : F
Engine
- Model : HM192PY
- Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
- Maximum Power : 16.0 hp @ 3600rpm
- Bore x Stroke : 92×67 mm
- Displacement : 445 cc
- Starting System : Recoil Start / Self Start
- Ignition System : TCI (Transistor Control Ignition)
- Fuel : Standard Petrol
- Fuel Tank Capacity : 20 Liters
- Fuel Consumption # Ltr./Hr. 60 % Duty Cycle : 2.0 Ltr./hr.
- Continuous Operating Hour : Approx. 10 hr.
- Lube. Oil Capacity : 1200 ml.
- Lubricating Oil Consumption : 4.3 gm./Hr.

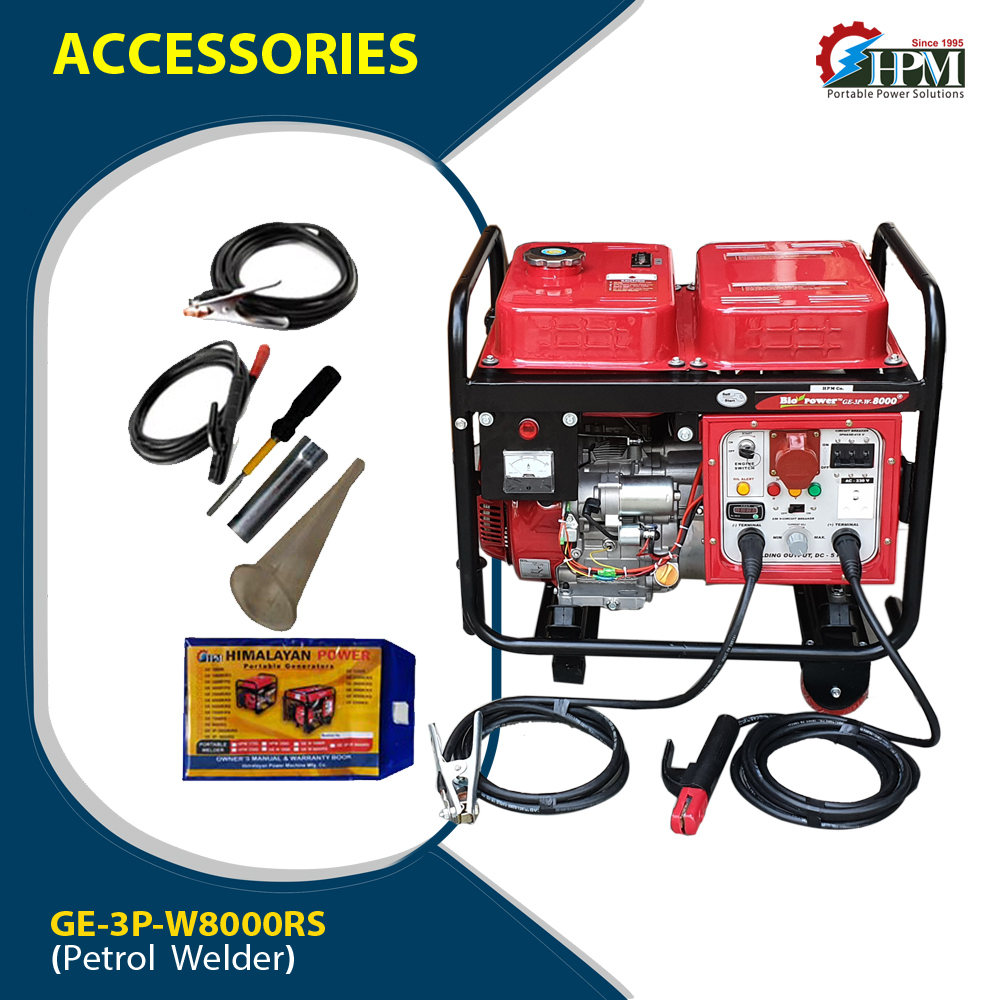

Standard Accessories
- AC Plug (3 Phase) : 1Pcs.
- AC Plug (Single Phase) : 1Pcs.
- Tool Kit : 1 Set
- Welder Holder : 1 Set
- Earthing Clamp with 3Mtr. Cable : 1 Set
- Oil Funnel : 1 No
- Owner’s Manual : 1 No
- Battery Terminal : 1 Set
- Battery Tray & Holding Set : 1 Set
Panel & Other Standard Features
- A.C. Circuit Breaker (single Phase) : Yes
- A.C. Circuit Breaker Protector (3 Phase) : Yes
- Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
- A.C. Pilot Lamp (R, Y, B) : Yes
- Fuel Level Gauge: Yes
- A.C. Output Sockets ( Single Phase) : Yes (1 No.)
- A.C. Output Sockets ( 3 Phase) : Yes (1 No.)
- Digital Hour Meter & Frequency (Hz.) Meter : Yes
- Costar Wheels and handles : Yes (1 Set)
Size & Weight
- Dimension LxWxH (mm) : 1200 x 530 x 710 mm
- Dry Weight (Kgs.) With Wheels& Battery : 149 Kg
- Battery Specification : 12 Volt 25 Ah Size =190×120×225 (L×W×H)
Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification’s can change without any prior intimation
