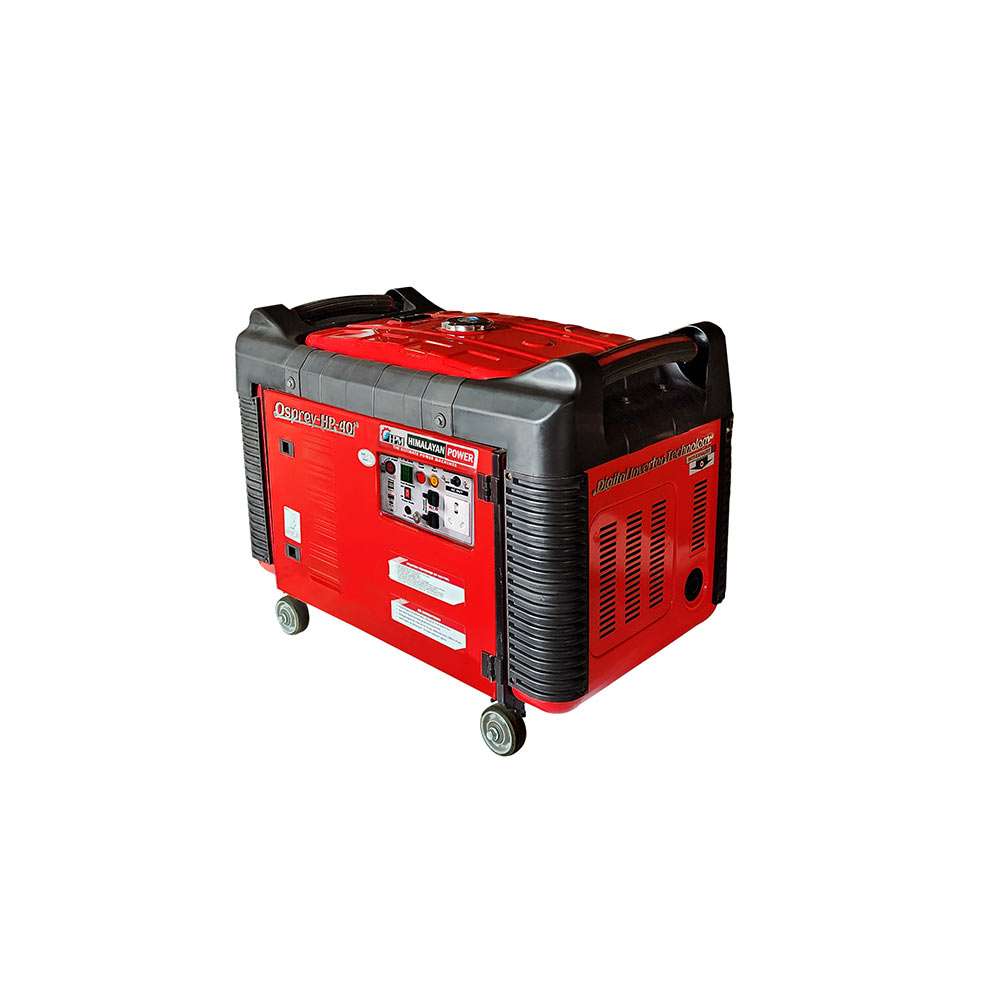

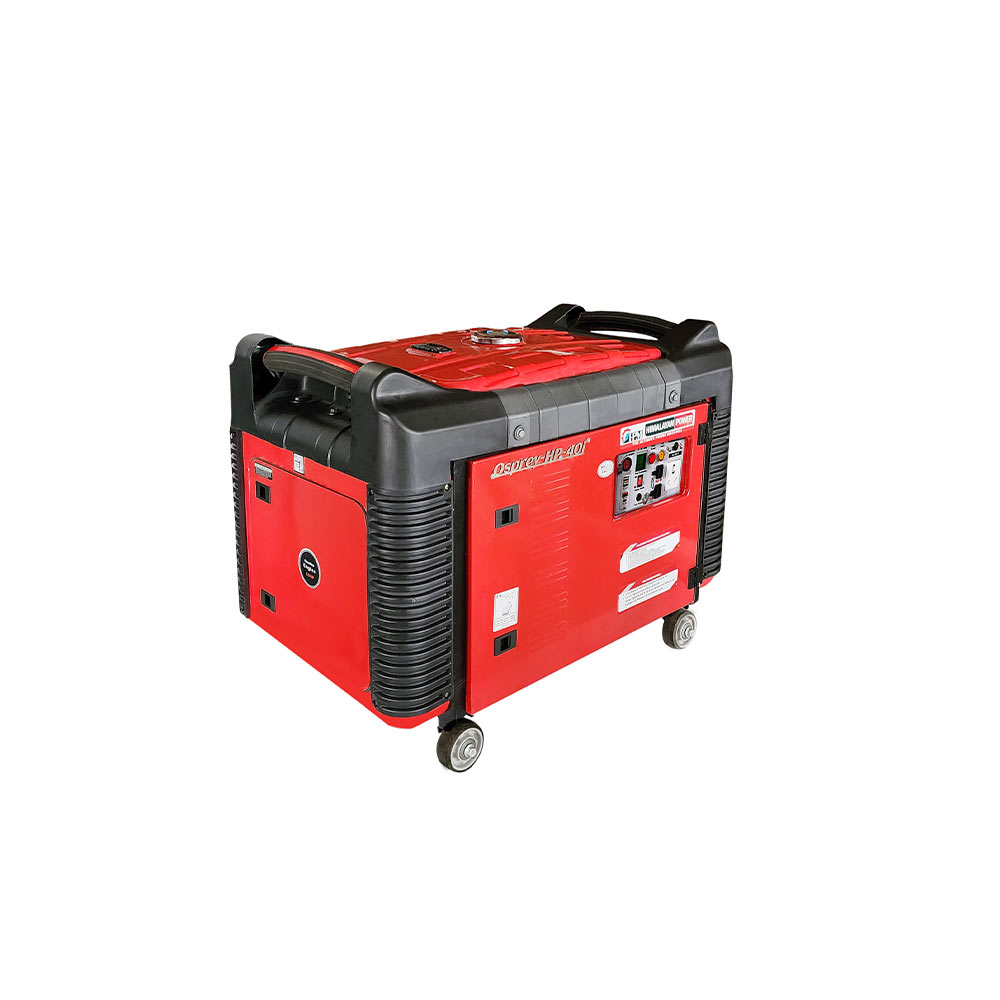

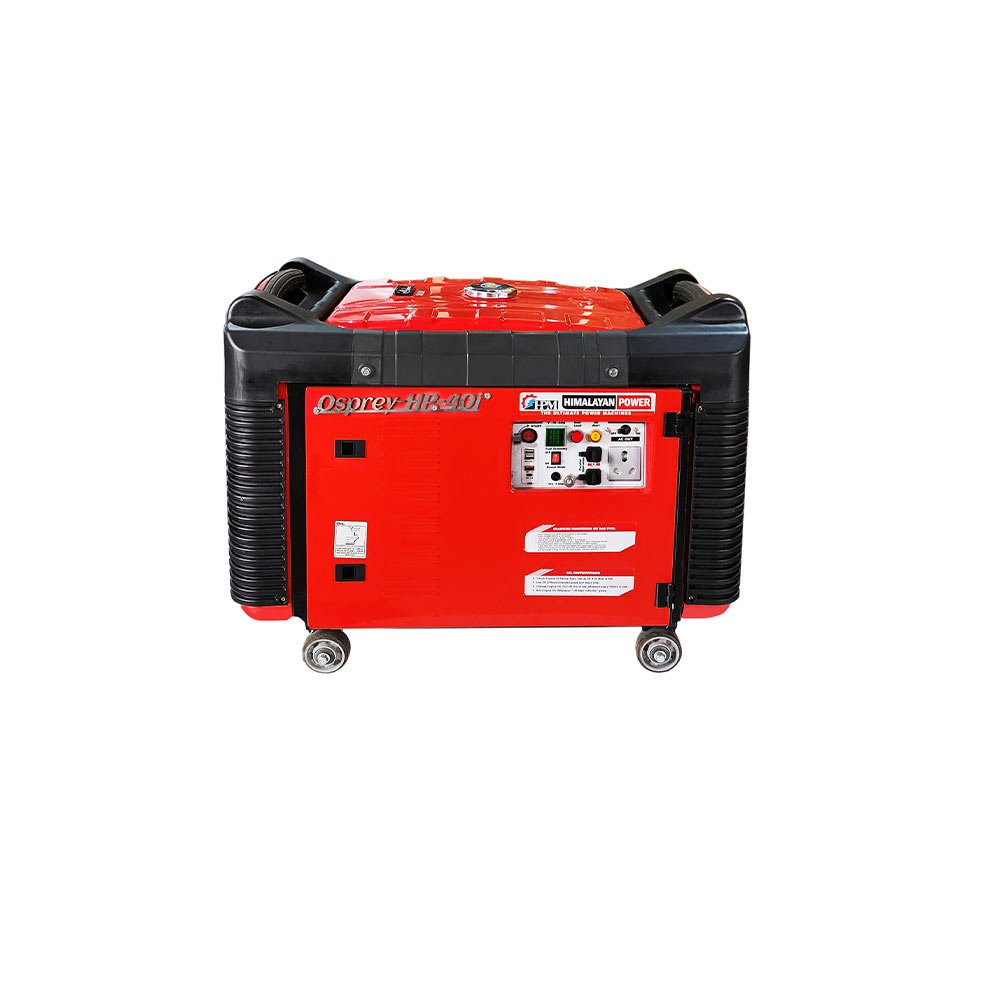

4 KVA Inverter Generator, Petrol Run, Model Osprey HP-40i, Recoil Start
- *Max AC. Output VA: 4000
- *Rated AC. Output VA: 3800
- DC Output :5V-20V DC Panel
- QC: 3.0 USB Port
- PD: 3.0 Type C USB
- 12V DC - DC 5521 (1 Ports)
- Starting System: Recoil Start
- Fuel Consumption: Petrol 1.3 Ltr./Hr. / LPG: 750 Gm. Approx.
- Run time: 16hr. Approx.
- Pure Sine Wave
- Paralleling AC Output : 6KVA (2 x Osprey HP-40i)
- Fuel Tank Capacity :- 20 Ltr.
Special Highlight:
- 4 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
- To get more Power to Run Heavy Equipment, 2 or More HP 30i Generator can be made to Run In Parallel, Two P30i Generators in Parallel will produce 4 KVA + 4 KVA = 6KVA Power
Application:
- Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment's, Military & Powering Defense Equipment's Etc.
This Premium product is the Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is a more than 25-year company that offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- *Max AC. Output VA : 4000
- *Rated AC. Output VA : 3800
- Rated Current Amps : 16.5
- NFB Amps : 17
- AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
- Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Invertor : 100 KHz, IGBT Based Digital Invertor – 4 Kw
DC Outputs
- DC 12 V – 120-Watt, CG Port
- Continuous Output Current : 10 A (Max. 120 Watt)
- 12V DC Output Over Load Current Protection : Yes >10 A (Disconnected Load Recovery)
- DC Output Short-circuit Protection : Yes (Disconnect Load Recovery)
- DC Outputs - 5V to 20 V & DC Ports USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
- USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
- Type - C USB (4) : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A
Engine
- Model : HM170P
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 6.5 HP @ 3600
- Bore x Stroke : 70x58 mm
- Displacement : :223 cc
- Starting System : Recoil Start
- Governor: Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load)
- Fuel : Petrol + LPG (Optional)
- Fuel Tank Capacity : Petrol -20.5 Ltr.
- Fuel Consumption : Approx. Petrol 1.5 ltr/hr, LPG: 850gm./hr.
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level (Db) (from 1 meter) : <86Db (as per CBCP - II Norms)
Panel & Other Standard Features
- Multifunction Digital Meter & Indicator: Digital Console (V, Hz, Amp)
- Oil Alert System: Yes
- Over Load Indicator : Yes
- 2 Genset Paralleling Capability: Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
- LPG/ Gas Fuel Compatibility: Yes
- AMF Panel Auto & Remote Start Compatibility: Yes (Optional)
- Fuel Level Gauge : Yes
- AC On /Off, Overload Protection (NFB) : Yes
- Electronic Over Load Protection : Yes, Inbuilt with Inverter
- Costar Wheels : Yes
Packing
- Weight Appprox (Kg) : 71.5 KG
- Dimension LxWxH (mm) : 785 mm X 520 mm X 608 mm
- Battery Specification :12 Volt 9 Ah Size
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation.
