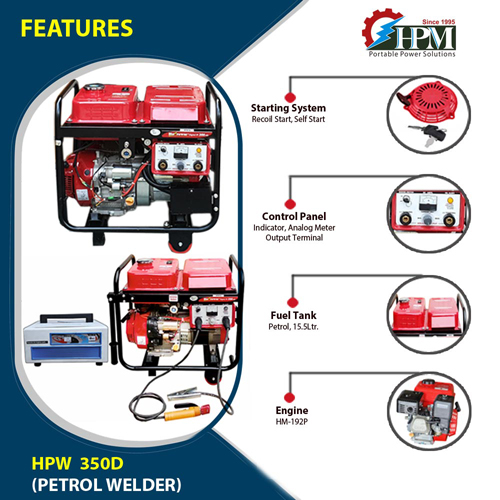

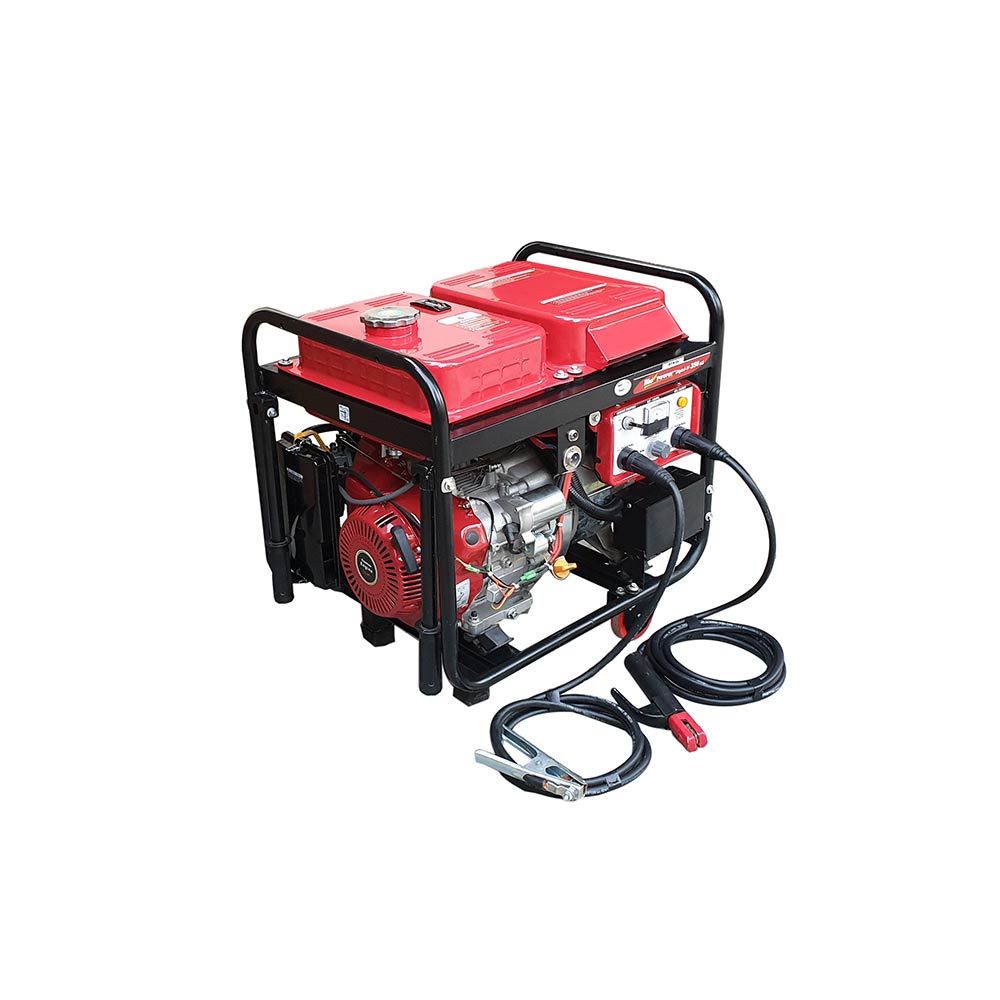

300 Amps Welding Generator - 9.KW , Petrol Run, Model HPW-350D, Recoil & Self Start

₹153100 ₹198985

  • Maximum Output (Duty Cycle 60%) : 300 Amps.
  • Maximum Output (Duty Cycle 100%) : 275 Amps.
  • Electrode diameter : 3 mm to 6.0 mm
  • Starting System : Recoil Start / Self Start
  • Fuel Consumption Ltr./Hr. : 2.0 Ltr./hr. (Approx)
  • Continuous Operating Hour : Approx. 8 hr.
  • Aux. AC Output 230 Volt - 50 Hz : Invertor 3.0 KVA – 230 Volt AC, 50 Hz

Special Highlights & Applications:

  • World’s Most Portable, Professional &High Power Arc Welding Machine Suitable for High Class All type Weldings Including Structural Welding Rods 7018 Size 5mm Electrode.
  • Most suitable for Big Diameter Pipe Line welding.

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • Maximum Output (Duty Cycle 60%) : 300 Amps.
  • Maximum Output (Duty Cycle 100%) : 275 Amps.
  • Working Voltage : 20v to 39v
  • Open Circuit Voltage : 80 Volt
  • Current Regulation Amps : *60 - 325
  • Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge Twin SCR Block
  •  Electrode diameter : 3 mm to 6.0mm
  • Alternator Type : Multiphase , Brush less with  Rear Earth Magnet Rotor

​Engine

  • Model : HM192P
  • Type : Single Cylinder Air- cooled; 4 strokes, OHV 250 Inclined
  • Maximum Power : 16 HP
  • Bore x Stroke : 92×67
  • Displacement : 460 cc
  • Starting System : Recoil Start / Self Start
  • Ignition System : TCI (Transistor Control Ignition)
  • Fuel : Standard Petrol
  • Fuel Tank Capacity : 15.5 Liters
  • Fuel Consumption # Ltr./Hr.  : 2.0 Ltr./hr.
  • Continuous Operating Hour : Approx. 8 hr.
  • Lube. Oil Capacity : 1200 ml.
  • Lubricating Oil Consumption : 4.3 gm./Hr.

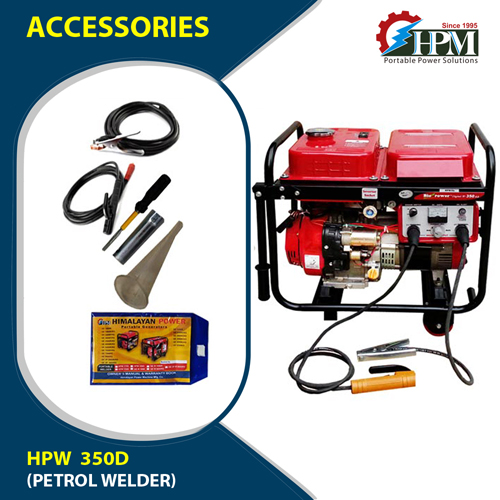

Standard Accessories

  • Tool Kit : 1 Set
  • Welder Holder : 1 Set
  • Earthing Clamp with 3Mtr. Cable : 1 Set
  • Oil Funnel : 1 No
  • Owner’s Manual : 1 No
  • Battery Terminal : 1 Set
  • Battery Tray & Holding Set : 1 Set

Panel & Other Standard Features

  • Aux. AC Output 230 Volt - 50 Hz  : Invertor 3.0 KVA – 230 Volt AC, 50 Hz (Optional)
  • Overload Protection (NFB) : Yes (Inverter)
  • Power Indicator : No
  • Ampere Meter : Yes
  • Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
  • Fuel Level Gauge : Yes
  • Costar Wheels and handles : Yes (1 Set)

Size & Weight

  • Dimension LxWxH (mm) : 670 x 510 x 670 mm
  • Dry Weight (Kgs.) With Wheels& Battery : 82 Kg
  • Battery Specification : 12 Volt 25 Ah  Size =190×120×225 (L×W×H)

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team.  This specification’s can change without any prior intimation





Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
