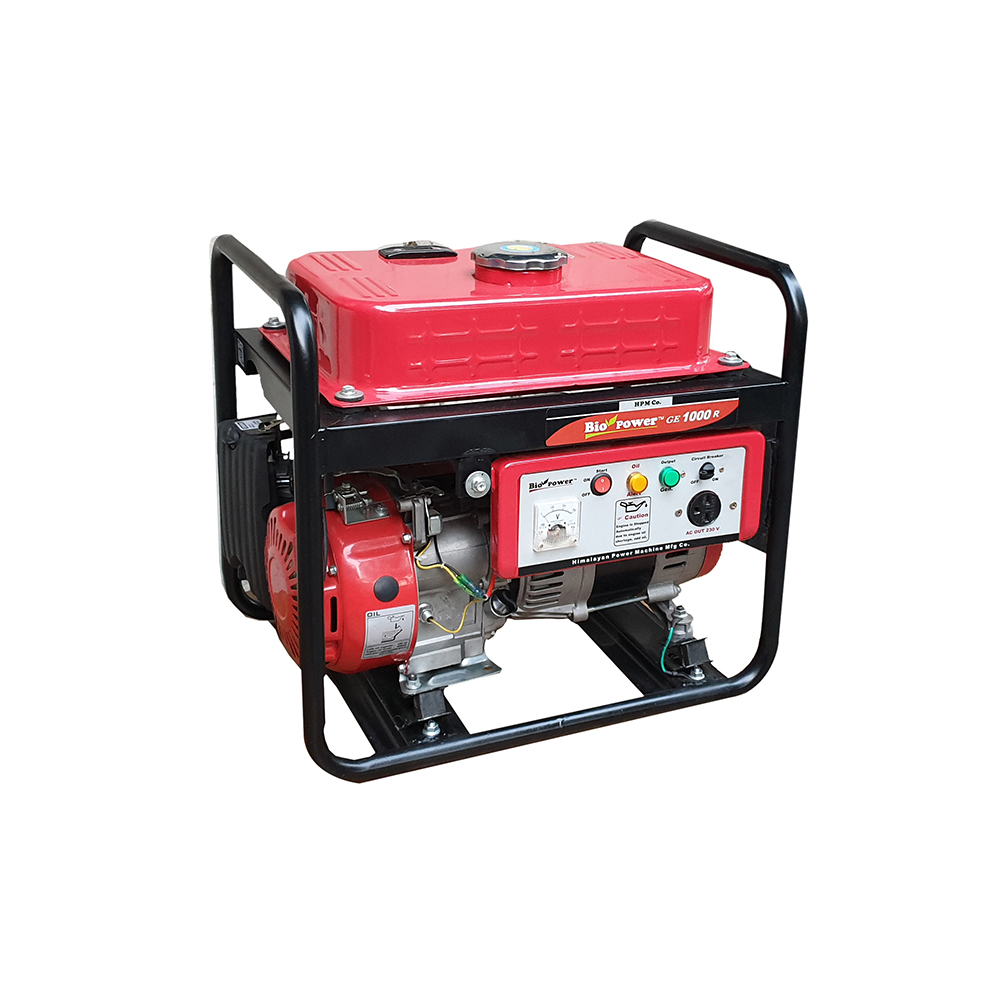

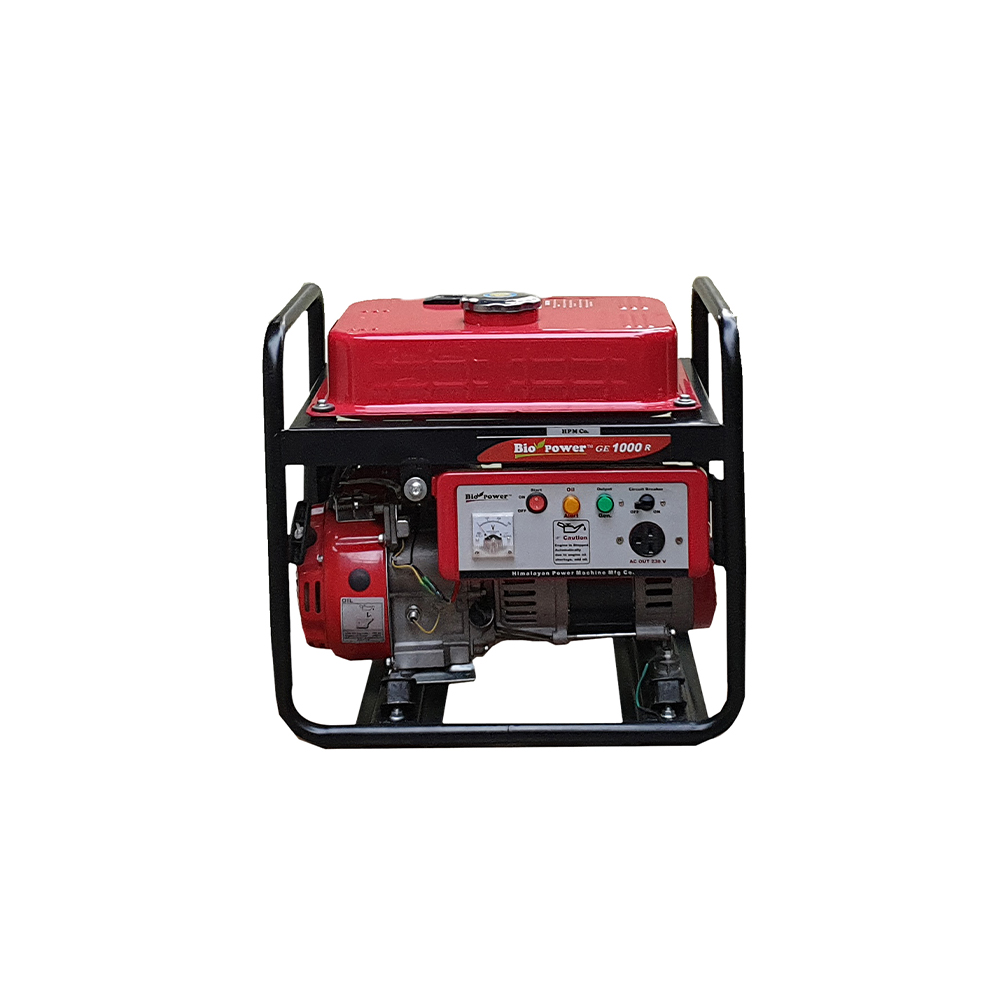

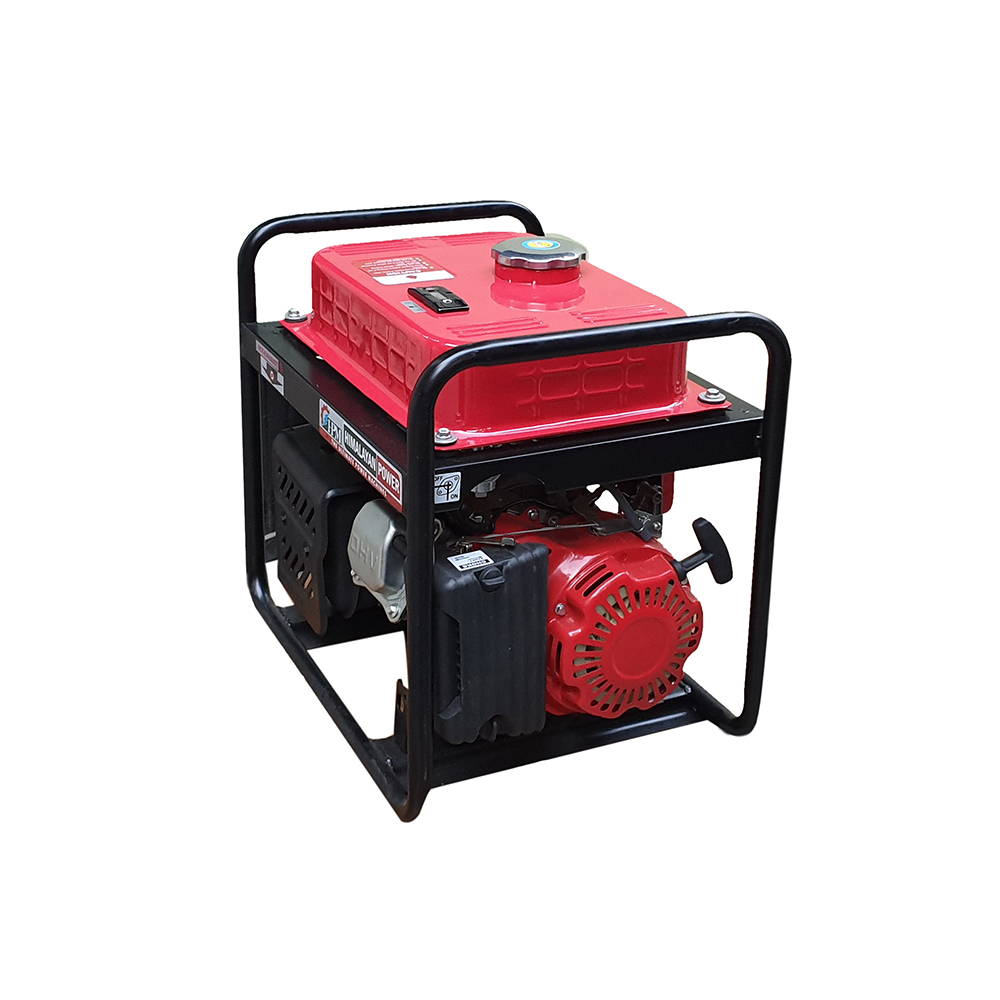

1 KVA Petrol Generator, Model GE-1000R, Recoil Start
- *Max AC. Output VA: 850
- *Rated AC. Output VA: 750
- Starting System : Recoil Start
- Fuel Consumption : Petrol 0.55 Ltr/Hr. Approx
- Run time: 14hr. Approx
Special Highlight :
- India Lightest & Most Fuel Efficient 850 VA Genset Can Also Runs On LPG Cylinder & Produce Electricity At Most Economical Price.
Application :
- For Home & Shop Use For All Low & Middle Income People In Power Deficit State, Where Power Cost Is For More Than 12 Hrs. Can Charge Inverter Battery Along With Other House Load.
- Run Water Pump Set Refrigerator, TV, Cooler Etc. Household Appliances.
- Due To Light Weight Ideal for Field Jobs and Mobile Applications, Picnic Camp Application.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- *Max AC. Output VA : 850
- *Rated AC. Output VA : 750
- Rated Current Amps : 3.3
- NFB Amps : 4
- AC. Voltage at Rated Load : 220 Volts ± 10 Volt 50 Hz, Single Phase
- AC. Voltage at No Load: 250 Volts ± 5 Volt
Alternator
- #Alternator Max. Current Capacity : 6 Amps.
- Alternator : Brushless, Rare Earth Magnetic Rotor, THD = 5 %, Pure Sine Wave
Engine
- Engine Model : HM156P
- Type : OHV25°Inclined,single cylinder, 4 strokes, S.I, Forced air cooling
- Maximum Power : 3.0 hp @ 3600rpm
- Bore x Stroke : 56×40 mm
- Displacement : 98cc
- Starting System : Recoil Start
- Fuel : Petrol + LPG (Optional)
- Fuel Tank Capacity : Petrol -7.5 Ltr.
- Fuel Consumption : 0.55 ltr/hr, Approx.(At rated Load)
- Continues Running (With One Filling) :14 Hrs.
- Lube. Oil Capacity : 400 ml.
- Lubricating Oil Consumption : 6.5gm./Kw./hr.
- Sound level (Db) (from 1 meter) : <86Db

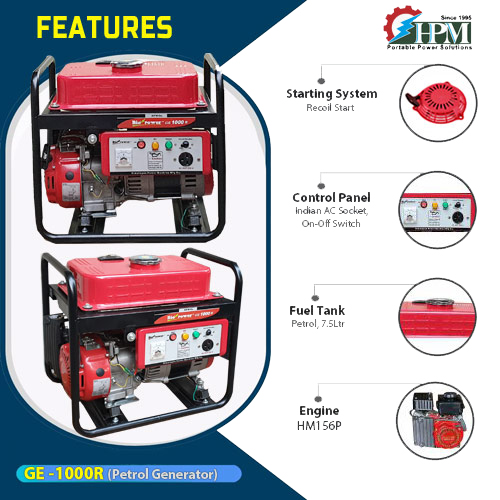

Panel & Other Standard Features
- Voltmeter : Yes (Analogue)
- Digital Hour Meter : No
- Oil Alert System : Yes
- LPG/ Gas Fuel Compatibility : Yes (Optional)
- AMF Panel Auto & Remote Start Compatibility : No
- Fuel Level Gauge : Yes
- Overload Protection (NFB) : Yes
- Costar Wheels : Optional
Size & Weight
- Approx. Weight (Kg) : 28 KG
- Dimension LxWxH (mm) : 500 X 395 X 450 mm
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation
