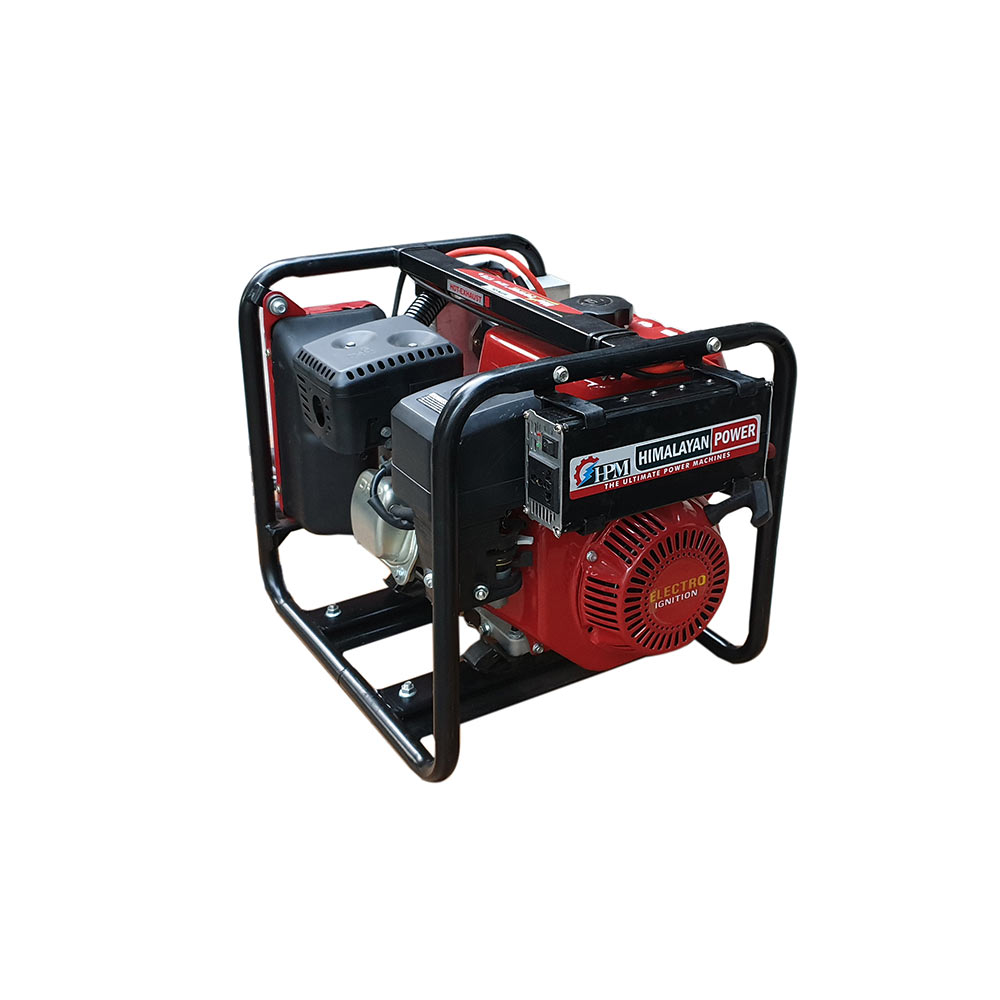

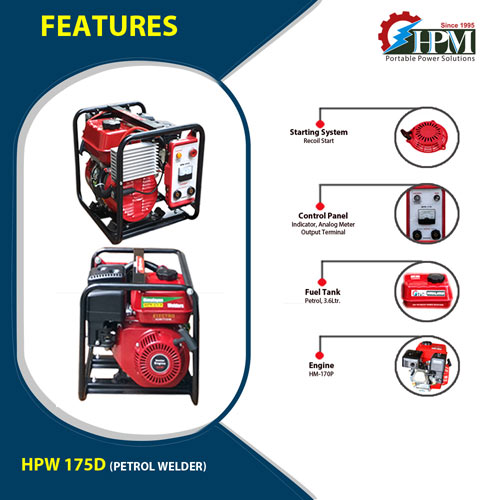

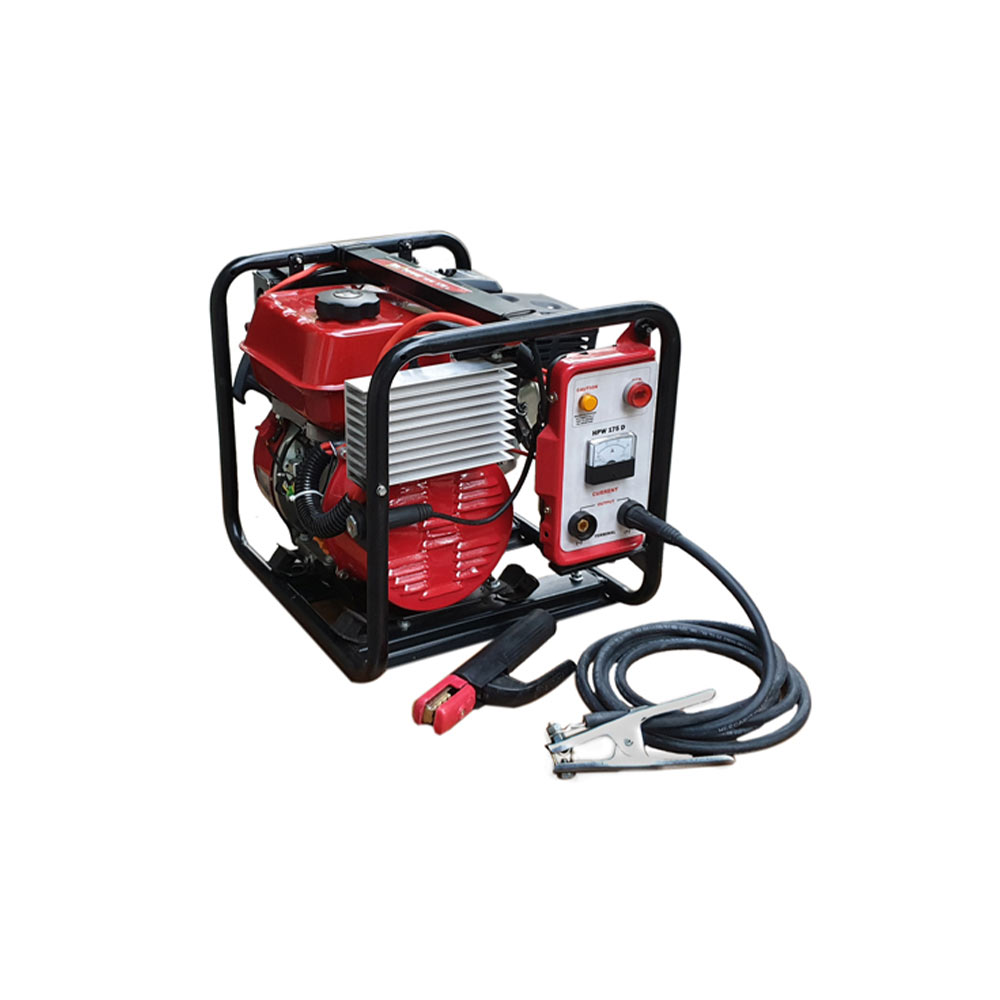

175 Amps Petrol Welding Generator, Model HPW-175D
- DC Welding Output: 75 to 175 Amps
- Electrode Dia.: 2.5mm to 4mm
- Starting System : Recoil Start
- *AC. Output VA: Inverter 1 KVA (Optional)
- Fuel Consumption: Petrol 1 Ltr./Hr. Approx
- Run time: 3.5 hr. Approx
Special Highlight:
- World’s Ultra Light& Low Cost Arc Welding Machine Suitable for General Purpose Structural Welding, Light and medium, up to 4mm Electrode
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- Maximum Output (Duty Cycle 60%) : 175 Amps.
- Working Voltazge : 20v to 30 v
- Open Circuit Voltage : 50 Volt (Maximum)
- Current Regulation Amps : 75 Amps to 160 Amps
- Rectifying Mode : 3 phase - Bridge Rectifier (Full Wave)
- Maximum Electrode diameter : 2.5 mm to 4 mm
Engine
- Model : HM170 P
- Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
- Maximum Power (Duty Cycle 60%) : 6.5 HP
- Starting System : Recoil Start
- Bore x Stroke : 70 x 54
- Displacement : 208 cc
- Ignition System : TCI (Transistor Control Ignition
- Fuel : Standard Petrol
- Fuel Tank Capacity : 3.6 Ltr
- Fuel Consumption # Ltr./Hr : 1Ltr/hr
- Continuous Operating Hour : 3.5 Hrs
- Lube. Oil Capacity : 600ml
- Lubricating Oil Consumption : 2.5 gm./Hr.

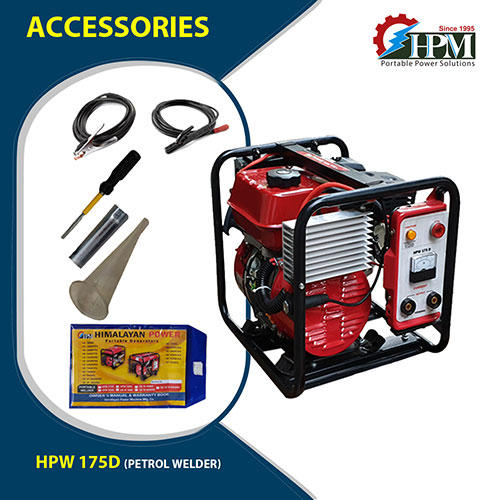

Standard Accessories
- Tool Kit : 1 Set
- Welder Holder : 1 Set
- Earthing Clamp with 3Mtr. Cable : 1 Set
- Oil Funnel : 1 No.
- Owner’s Manual : 1 No.
Panel & Other Standard Features
- Aux. AC Output 230 Volt - 50 Hz : Invertor 1 KVA (Optional)
- Overload Protection : Yes
- Power Indicator : Yes
- Ampere Meter : Yes
- Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
Size & Weight
- Dry Weight (Kgs.) : 27KG
- Dimension LxWxH (mm) : 440 x 385 x 420mm
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation
