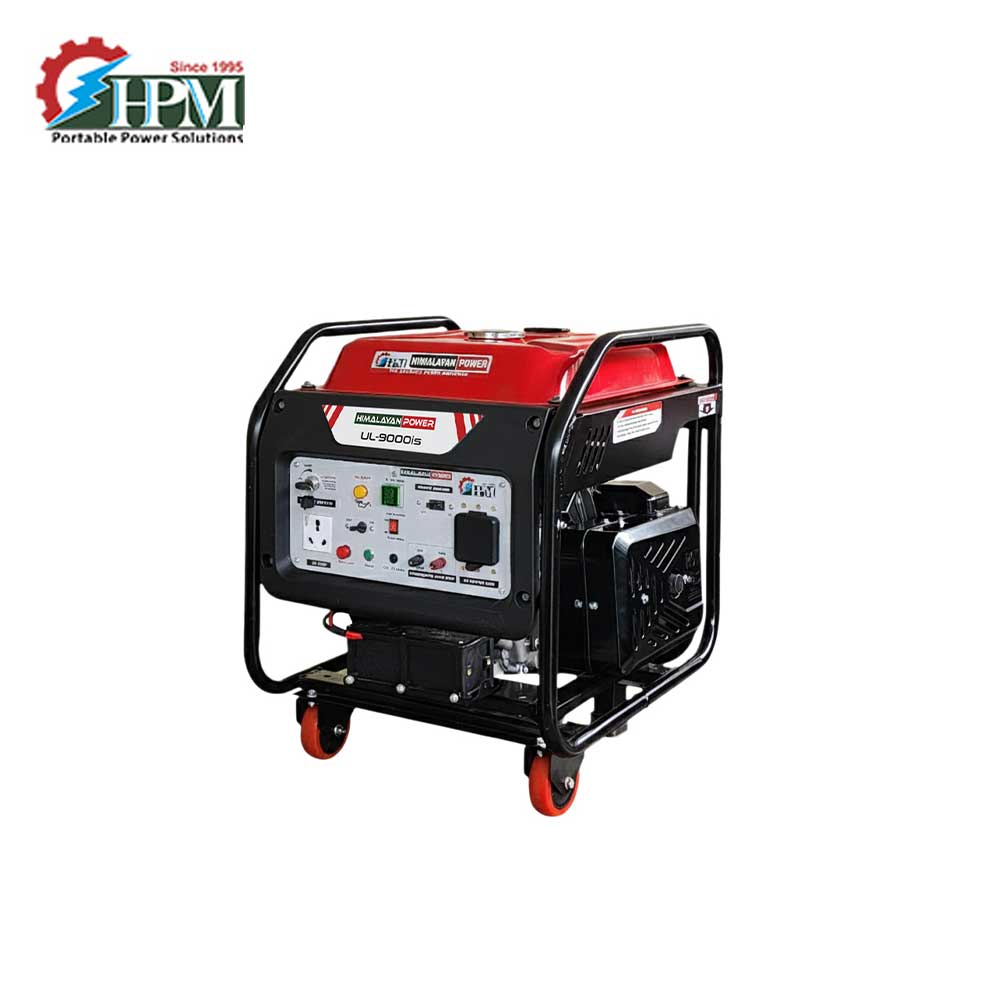

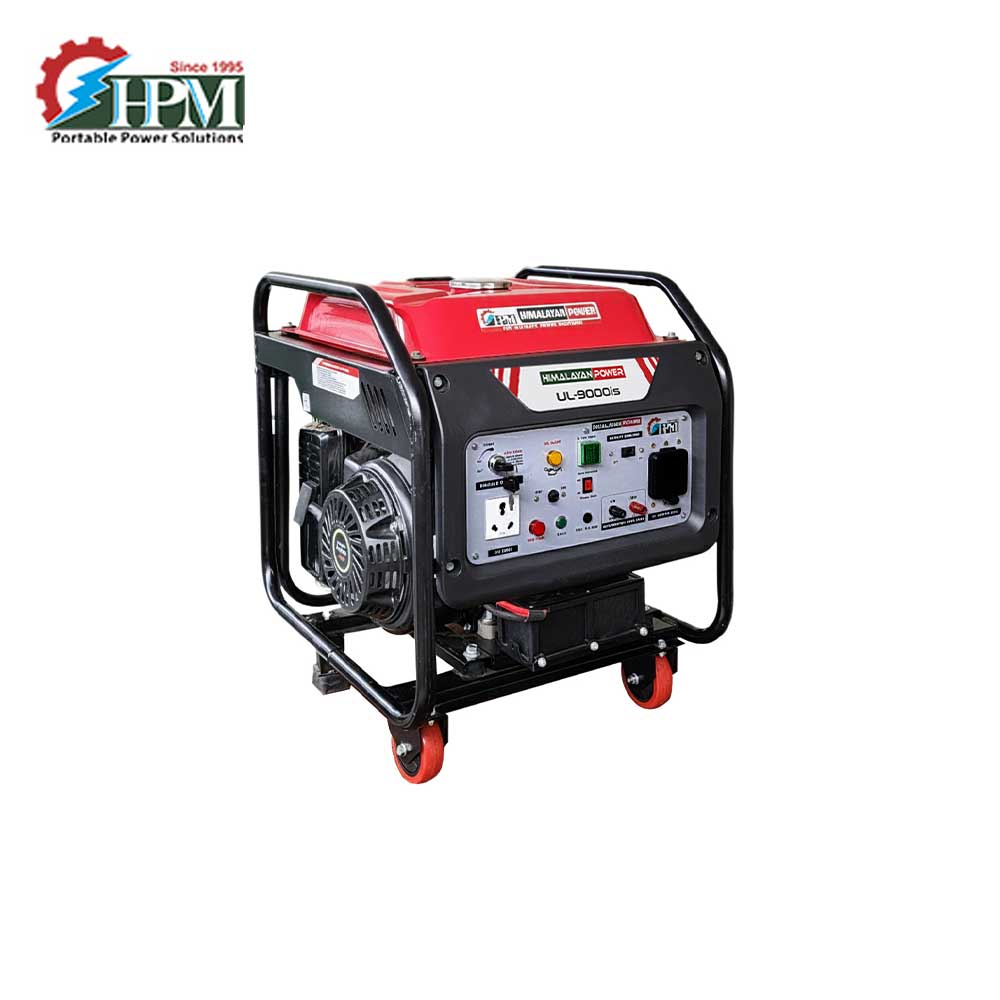

9 KVA Portable Generators,Oasis UL-9000is
- *Max AC. Output VA : 9000
- *Rated AC. Output VA : 8000
- Starting System : Recoil Start + Self Start
- Fuel Consumption : Petrol 2.5 ltr/hr Approx. Or LPG 1.3kg/hrs
- Run Time: Approx.10 Hrs
Special Highlight :
-
This is a Inverter Generator, 2 Or More Generators can be Connected in Parallel to run Much Bigger AC Loads.This Generator produces High Quality Power with Pure Sine Wave with fix Voltage -Frequency. This is a Dual Fuel Generator & it can run on LPG Cylinder or Petrol fuel.
-
This is a Ultra light but most Powerful 9 KVA Portable Generators, Runs 2- 1.5 Ton Air Conditioner + Other Loads of your Office & Home.
Application :
- For Running 1.5/2 Ton Air Condition, Office Use, Home Use, Small Institution, Computer Center, Nursing Home School Cyber Café Small Banks ATM, RTV Vans, Ambulances, Food Vans, Vanity Van & other Vehicular Applications, etc.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 35 years old company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- *Max AC Output VA : 9000
- *Rated AC Output VA : 8000
- Rated Current Amps : 32
- NFB Amps : 16 Amps, 32 Amps,
- Rated Ac Voltage : 16 Amps, 32 Amps,
- Phase & Frequency : Single Phase, 50 Hz ± 0.3
Alternator
- Alternator Max. Current Capacity : 35 Amps.
- Alternator : Multi pole (11 Pairs), Permanent Magnet Alternator
- Inverter (9KW) : High Voltage & High Frequency, Transformer Less,IGBT Technology, Paralleling Compatibility
Engine
- Engine Model : HM192PY
- Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
- Maximum Power : 16.0 hp @ 3600rpm
- Bore x Stroke : 92×67 mm
- Starting System : Recoil Start + Self Start + Remote Start
- Displacement : 445cc
- Fuel Tank Capacity : 25 Ltr
- Fuel Consumption (at 70% Load) : Petrol 2.5 ltr/hr Approx. Or LPG 1.3kg/hrs
- Lube. Oil Capacity : 1200 ml
- Lubricating Oil Consumption : 4.3 gm/Hr
- Continues Running (With One Filling) : Approx.10 Hrs(Petrol) Or 10 Hrs per LPG Cylinder
- Sound level (dB) (from 1 meter) : <86dB
Panel & Other Standard Features
- AC Voltmeter - AC Amps- Hz Meter : Yes,Multifunction Digital Meter Provided
- AC Output Sockets : Yes, 2 nos. ,Sockets -50Amps, 25 Amps
- Oil Alert System : Yes
- AC Output Indicators : Yes
- Paralleling Capability : Yes (Optional)
- 12V-DC Output : Yes, 5521 Output Socket for 12V-8.3Amps
- Fuel Level Gauge : Yes (Optional)
- Fuel Level Gauge : Yes
- Overload Protection (NFB) : Yes, 2 Circuit Breakers Provided
- Caster Wheels : Yes
Size & Weight
- Approx. Weight (Kg) : 60Kg
- Battery Specification: Lithium Battery 12.8V - 15 Ah
