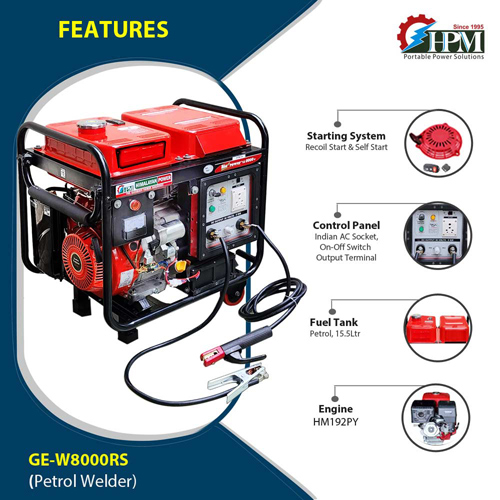

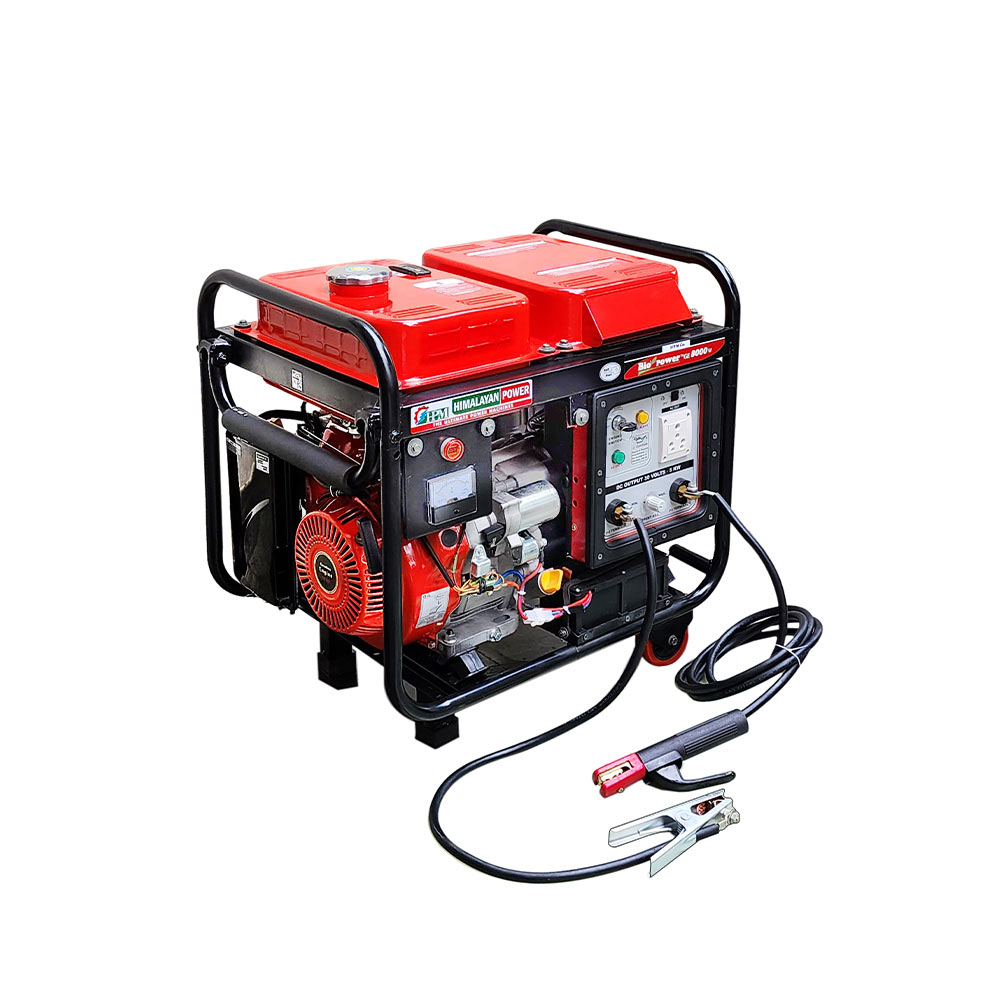

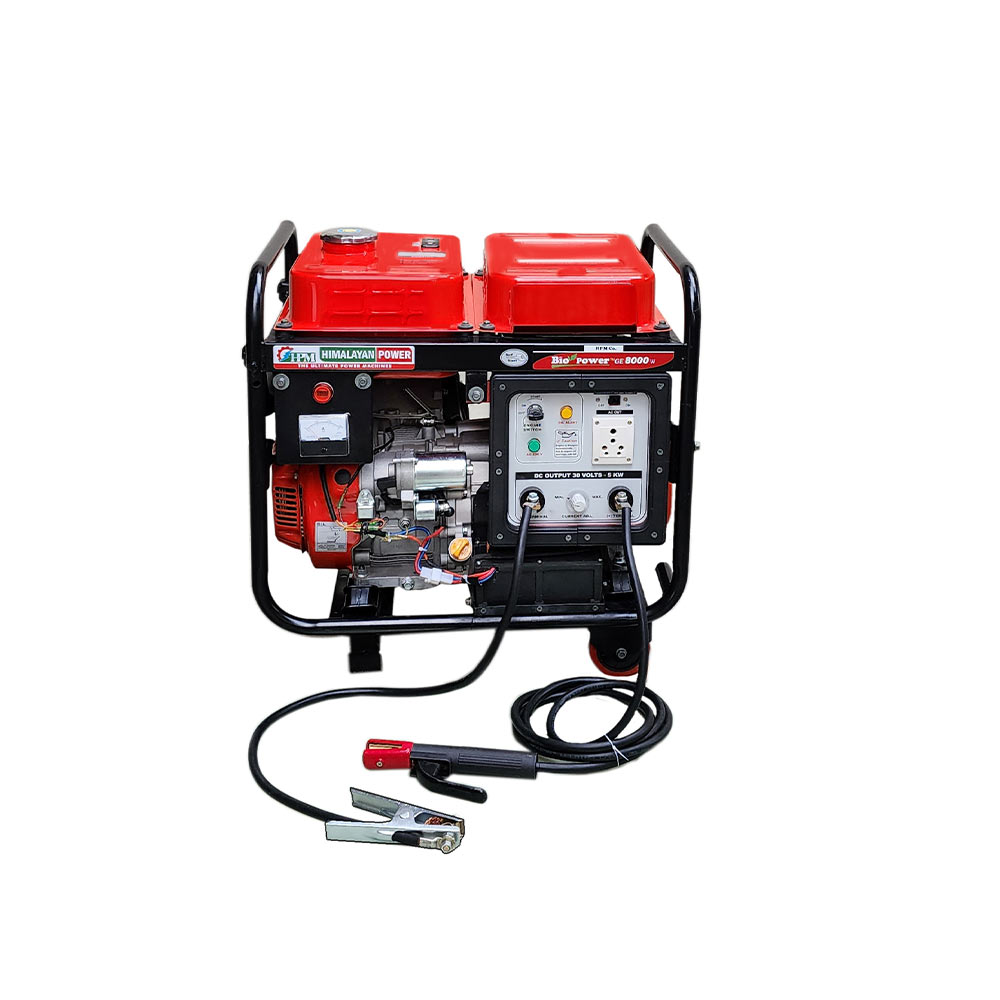

250 Amps Welding Generator -5 KW, Model GE-W8000RS, Recoil & Self Start

₹148800 ₹193408

  • Welding Output Current (Duty Cycle60%) : 275Amps.
  • Welding Output Current (Duty Cycle100%): 200Amps.
  • Open Circuit Voltage (OCV): 65 Volt (Minimum)
  • Electrode diameter : 2.6 mm to 4.0 mm
  • Max AC Output (Single Phase) : 5000 VA
  • Starting System : Recoil Start / Self Start
  • Fuel Consumption Ltr./Hr. : 2.0 Ltr./hr. (Approx)
  • Continuous Operating Hour : Approx. 8 hr.

Special Highlights & Applications

  • Portable Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Heavy Welding Jobs, up to 5 mm Electrode
  • In built AC 230 volt – 50 Hz, 5 KVA for AC Appliances

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • WeldingOutput Current (Duty Cycle60%) : 275Amps.
  • WeldingOutput Current (Duty Cycle100%) : 200Amps.
  • Working Voltage  : 20v to 32v
  • Open Circuit Voltage (OCV) : 65 Volt (Minimum)
  • Welding Current Regulation (Amps) ​ : 75-175 AMPS
  • Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
  • Maximum Electrode diameter  : 2.6mmto 5.0mm

AC GENERATOR

  • Alternator Type : Brushless with Rear Earth Magnet Rotor.
  • Maximum Ac Output : 5000 VA
  • Rated Output Current  : 17.4Amps.
  • AC. Voltageat No Load : 240Volts±10 Volts,Single Phase
  • AC. Voltageat Rated Load  : 220Volts±10 Volts,SinglePhase
  • Frequency (Adjustable) : 50to60Hz.
  • NFB Amps : 18Amps.
  • Class of Insulation : F

​Engine

  • Model : HM192PY
  • Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
  • Maximum Power : 16.0 hp @ 3600rpm
  • Bore x Stroke : 92×67 mm
  • Displacement : 445 cc
  • Starting System : Recoil Start / Self Start
  • Ignition System : TCI (Transistor Control Ignition)
  • Fuel : Standard Petrol
  • Fuel Tank Capacity : 15.5 Liters
  • Fuel Consumption # Ltr./Hr. 60 % Duty Cycle : 2.0 Ltr./hr.
  • Continuous Operating Hour : Approx. 8 hr.
  • Lube. Oil Capacity : 1200 ml.
  • Lubricating Oil Consumption : 4.3 gm./Hr.

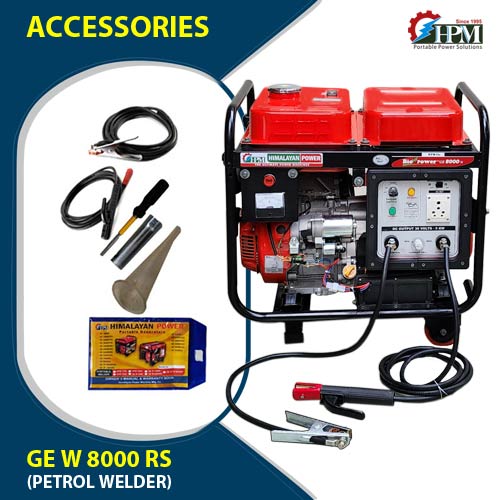

Standard Accessories

  • AC Plug : 1Pec.
  • Tool Kit : 1 Set
  • Welder Holder : 1 Set
  • Earthing Clamp with 3Mtr. Cable : 1 Set
  • Oil Funnel : 1 No
  • Owner’s Manual : 1 No
  • Battery Terminal : 1 Set
  • Battery Tray & Holding Set : 1 Set

Panel & Other Standard Features

  • A.C. Circuit Protector (NFB) : Yes
  • A C. Pilot Lamp​ : Yes
  • Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
  • Fuel Level Gauge: Yes
  • A.C. Output Sockets : Yes (1 Nos.)
  • Costar Wheels and handles : Yes (1 Set)

Size & Weight

  • Dimension LxWxH (mm) : 670 x 510 x 670 mm
  • Dry Weight (Kgs.) With Wheels& Battery : 103 KG
  • Battery Specification : 12 Volt 25 Ah  Size =190×120×225 (L×W×H)

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team.  This specification’s can change without any prior intimation

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
