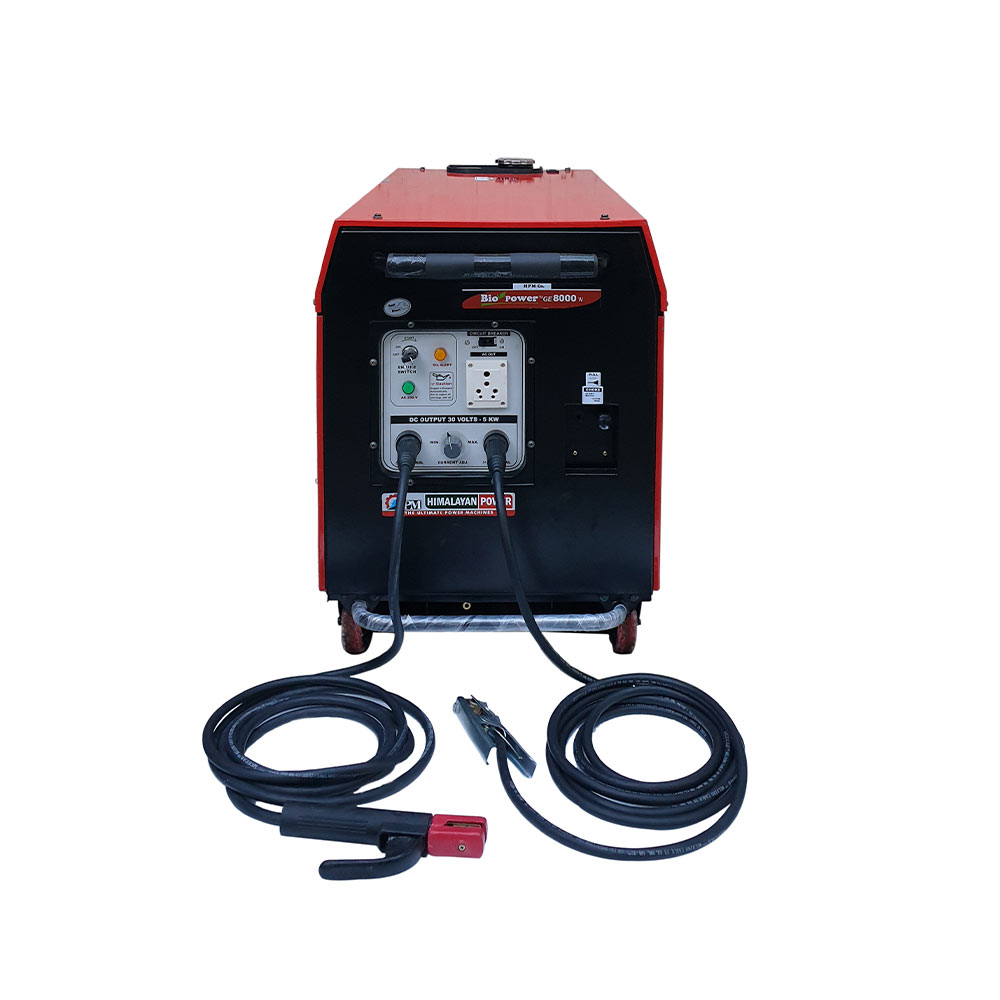

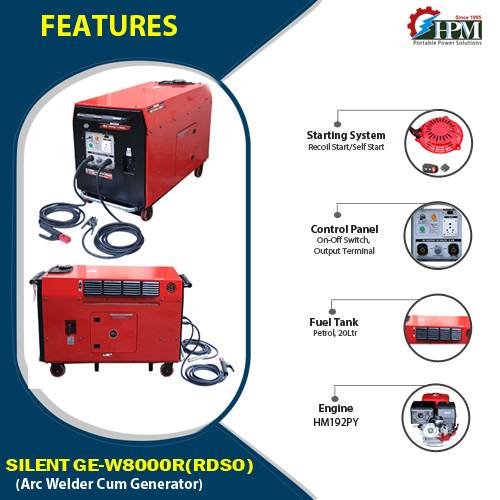

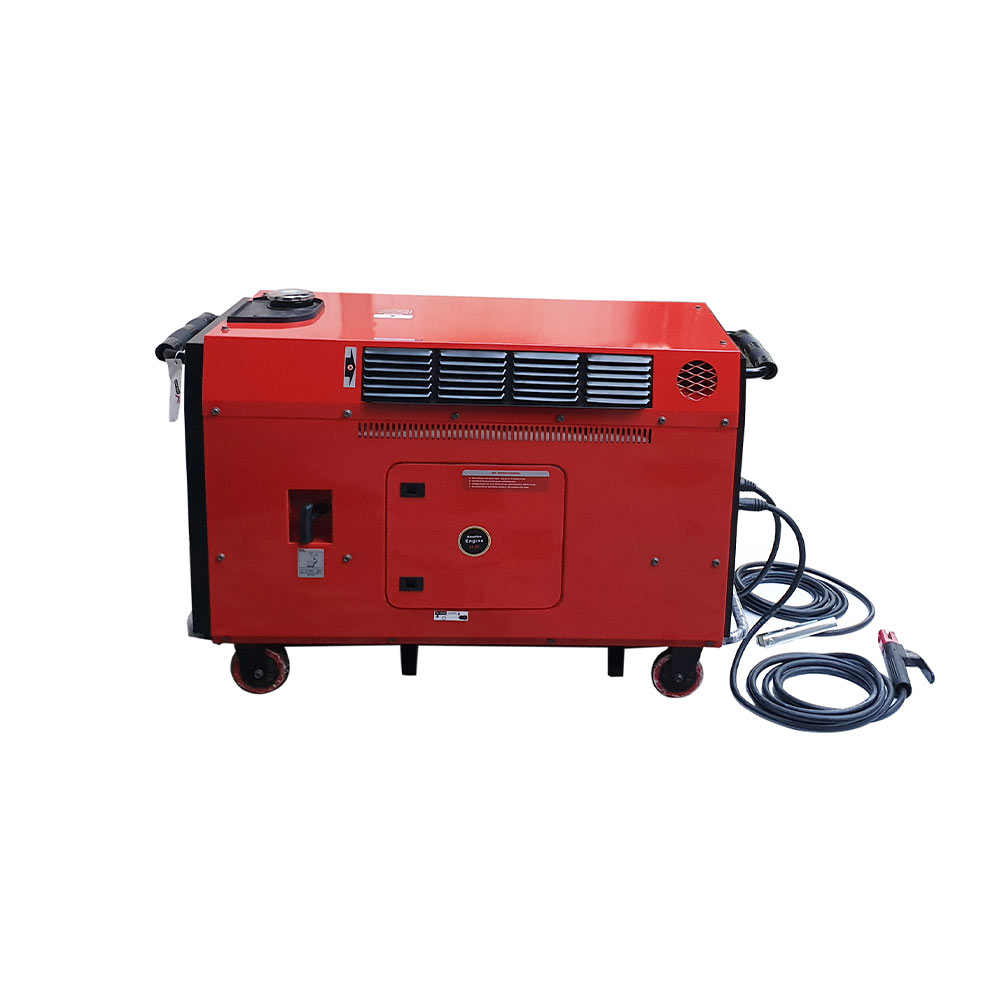

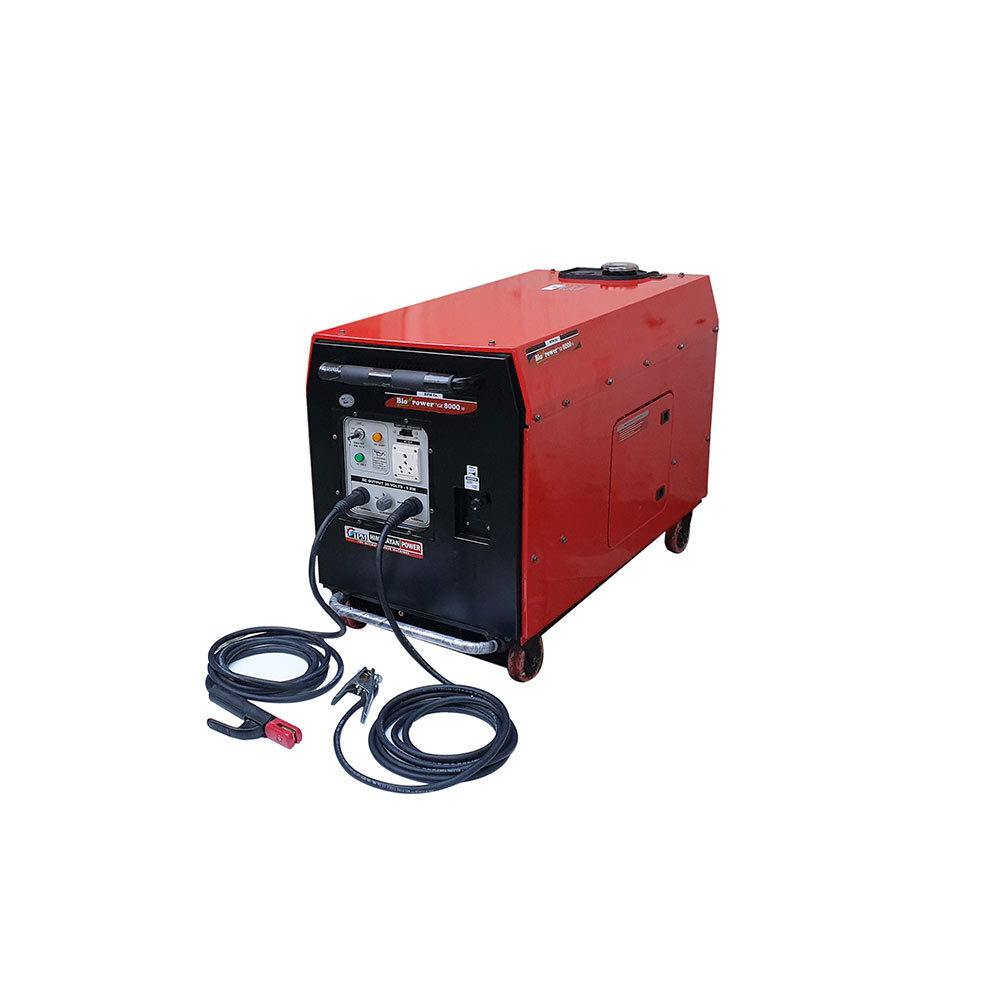

250 Amps - 6 KW, Petrol Welding Generator, Model Silent GE-W8000RS, Recoil & Self Start

₹201800 ₹262334

  • Welding Output Current (Duty Cycle60%) : 250Amps.
  • Welding Output Current (Duty Cycle100%): 200Amps.
  • Open Circuit Voltage (OCV): 65 Volt (Minimum)
  • Electrode diameter : 2.6 mm to 4.0 mm
  • Max AC Output (Single Phase) : 4500 VA
  • Starting System : Recoil Start / Self Start
  • Fuel Consumption Ltr./Hr. : 2.0 Ltr./hr. (Approx)
  • Continuous Operating Hour : Approx. 10 hr.

Special Highlights & Applications

  • Portable Arc Welder Cum Generator Machine Special design for Railway track Maintenance & for Heavy Welding Jobs, up to 5 mm Electrode.
  • In built AC 230 volt – 50 Hz, 3 KVA for AC Appliances
  • Because of CBCP II Norms Certified Canopy Generator Cum Welder, this is World’s Best Low Noise Generator Welder and it has High IP Rating 67

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • WeldingOutput Current (Duty Cycle60%) : 250Amps.
  • WeldingOutput Current (Duty Cycle100%) : 200Amps.
  • Working Voltage  : 20v to 30v
  • Open Circuit Voltage (OCV) : 65 Volt (Minimum)
  • Welding Current Regulation (Amps) ​ : 60 - 250 AMPS
  • Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
  • Maximum Electrode diameter  : 2.6mmto 4.0mm

AC GENERATOR

  • Alternator Type : Brushless with Rear Earth Magnet Rotor.
  • Rated Ac Output : 4500VA
  • Rated Output Current : 19.5 Amps.
  • AC. Voltageat No Load  : 240Volts±10 Volts,SinglePhase
  • AC. Voltageat Rated Load : 220Volts±10 Volts,SinglePhase
  • Frequency (Adjustable) : 50to60Hz.
  • NFB Amps : 20 Amps.
  • Class of Insulation : F

​Engine

  • Model : HM192PY
  • Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
  • Maximum Power : 16.0 hp @ 3600rpm
  • Bore x Stroke : 92×67 mm
  • Displacement : 445 cc
  • Starting System : Recoil Start / Self Start
  • Ignition System : TCI (Transistor Control Ignition)
  • Fuel : Standard Petrol
  • Fuel Tank Capacity : 15.5 Liters
  • Fuel Consumption # Ltr./Hr. 60 % Duty Cycle : 2.0 Ltr./hr.
  • Continuous Operating Hour : Approx. 8 hr.
  • Lube. Oil Capacity : 1200 ml.
  • Lubricating Oil Consumption : 4.3 gm./Hr.

Panel & Other Standard Features

  • Ampere Meter : Yes (0 – 300 Ampere)
  • A.C. Circuit Protector​ : Yes
  • A C.Pilot Lamp : Yes
  • Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
  • Fuel Level Gauge: Yes
  • A.C. Output Sockets : Yes (1 Nos.)
  • Costar Wheels (6 inch) : Yes (4 Nos.)
  • Mono - Rail : Yes

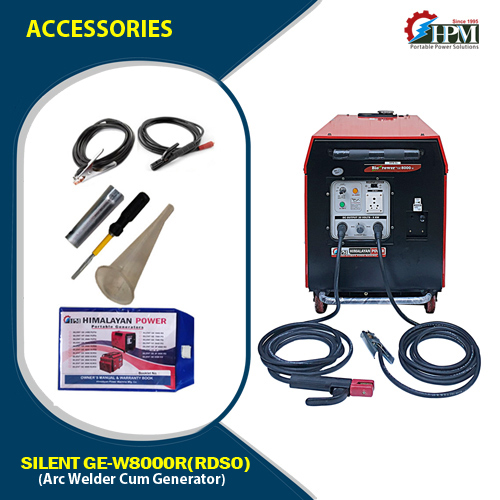

Standard Accessories

  • AC Plug : 1Pec.
  • Tool Kit : 1 Set
  • Welder Holder : 1 Set
  • Earthing Clamp with 3Mtr. Cable : 1 Set
  • Oil Funnel : 1 No
  • Owner’s Manual : 1 No
  • Battery Terminal : 1 Set
  • Battery Tray & Holding Set : 1 Set

Size & Weight

  • Dimension LxWxH (mm) : 1200 x 530 x 710 mm
  • Dry Weight (Kgs.) With Wheels& Battery : 149 Kg
  • Battery Specification : 12 Volt 18 Ah (9+9)

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team.  This specification’s can change without any prior intimation

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
