200 Amps Petrol Welding Generator , Model HPW-250D, Recoil Start

₹63200 ₹82154

  • DC Welding Output: 50 to 200 Amps
  • Electrode Dia.: 2.6mm to 4mm (E 7018)
  • *AC. Output VA: Inverter 1.2 KVA (Optional)
  • Starting System : Recoil Start
  • Fuel Consumption: Petrol 1 Ltr./Hr. Approx
  • Run time: 12 hr. Approx

Special Highlight:

  • World’s Most Portable, Professional & Low Cost Arc Welding Machine Suitable for High Class Welding Including Structural Welding Rods 7018 Size 4mm Electrode.

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • Maximum Output (Duty Cycle 60%): 200 Amps.
  • Welding Output at 100 % duty Cycle :175 Amps
  • Working Voltage: 20v to 32v
  • Open Circuit Voltage : 70 Volt (Maximum)
  • Current Regulation Amps​ : *75-200
  • Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
  • Maximum Electrode diameter : 2.6 mm to 4.0 mm (E 7018)
  • Alternator Type :Multiphase, Brush less with Rear Earth Magnet Rotor

Engine

  • Model : HM170FB
  • Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
  • Maximum Power :7.5 HP
  • Bore x Stroke : 70x58
  • Displacement : 223cc
  • Starting System : Recoil Start
  • Ignition System : TCI (Transistor Control Ignition)
  • Fuel : Standard Petrol
  • Fuel Tank Capacity :12 Liters
  • Fuel Consumption # Ltr./Hr. (at 60 % Duty Cycle) : 1.0Ltr./hr.
  • Continuous Operating Hour : 12 hr.
  • Lube. Oil Capacity : 600 ml.
  • Lubricating Oil Consumption : 2.5 gm./Hr.

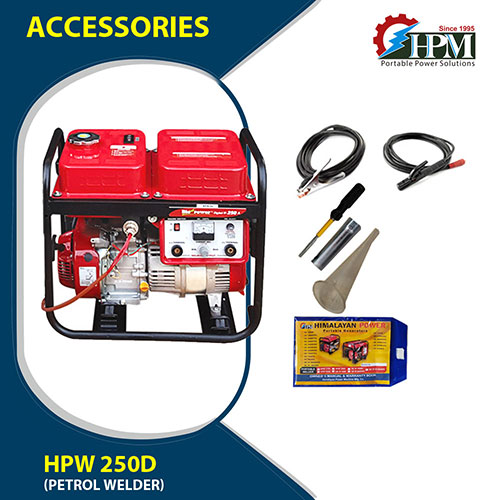

Standard Accessories

  • Tool Kit : 1 Set
  • Welder Holder : 1 Set
  • Earthing Clamp with 3Mtr. Cable : 1 Set
  • Oil Funnel : 1 No
  • Owner’s Manual : 1 No

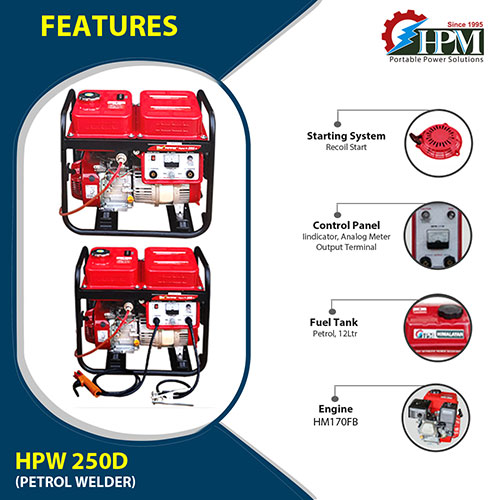

Panel & Other Features

  • Aux. AC Output 230 Volt - 50 Hz : Invertor 1200 VA – 220 Volt AC, 50 Hz (Optional)
  • Overload Protection (NFB) : Yes (Inverter)
  • Power Indicator​ : No
  • Ampere Meter Yes
  • Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
  • Fuel Level Gauge: Yes

Size & Weight

  • Dimension LxWxH (mm) :600x450x530  mm
  • Dry Weight (Kgs.)50  Kgs.

*For low welding current 50-75 Amps use “Sheet Metal Welding Attachment” (Optional at Extra Cost)­­

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team.  This specification’s can change without any prior intimation

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
