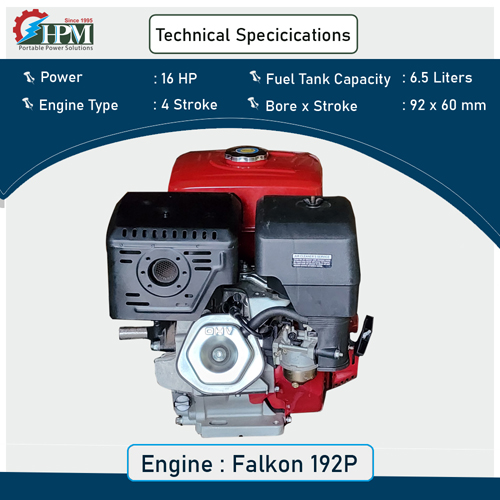

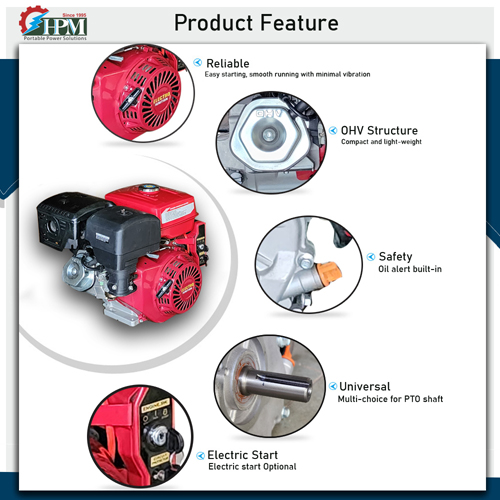

15 HP Engine , Multipurpose Model Falkon GE-192P, Recoil Start,Petrol Run
- Maximum Power: 16 hp/3600rpm
- Rated / Continuous Power: 15 hp/3600rpm
- Idle Speed: 1700 ± 150 rpm
- Starting System : Recoil Start / Electric Start (Optional)
- Working Speed: 3000 – 3600 rpm
- Fuel Tank Capacity: 6.5 Ltr
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- Model : HM 192 PY
- Engine Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
- Displacement(cc) : 445cc
- Bore Stroke (mm) : 92mm×67 mm
- Maximum Power : 16.0 hp/3600rpm
- Rated / Continuous Power : 15.0 hp/3600rpm
- Max Torque N.m(r/m) : 28.0 N.m/2750rpm
- Working Speed : 3000 – 3600 rpm
- Idle Speed : 1700 ± 150 rpm
- Compression Ratio : 8.3:1
- Valve Clearance : Suction Valve0.10±0.02;Exhaust Valve0.15±0.02
- Ignition System : Transistor Magneto
- Starting System : Recoil Start / Electric Start
- Spark Plug Clearance : 0.7-0.8 mm
- Lubrication System : Splash Type
- Governor System : Centrifugation Mechanical
- Air Cleaner : Semi Dry, Oil Bath, Dual
- Crankshaft Type : Keyway Type
- Power Take Off : 01:01
- Output Rotate System : Clockwise from Flywheel End
- Lube Oil Consumption (KW)(r/min) : ≤ 4.8g/kW .h
- Fuel Consumption(g/kw.h) : ≤ 374g/kW .h
- Engine Oil Type : SAE15W-40/<0℃:SAE5W-30
- Fuel Type : 93# or Higher-grade Unleaded Petrol
- Engine Oil Capacity(L) : 1.2 ltr.
- Fuel Tank Capacity(L) : 6.5 ltr.
Packing
- Gross Weight (Approx) : 35.5 Kg.
- Dimension(L×W×H)(mm) : 500x415x445
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation.
