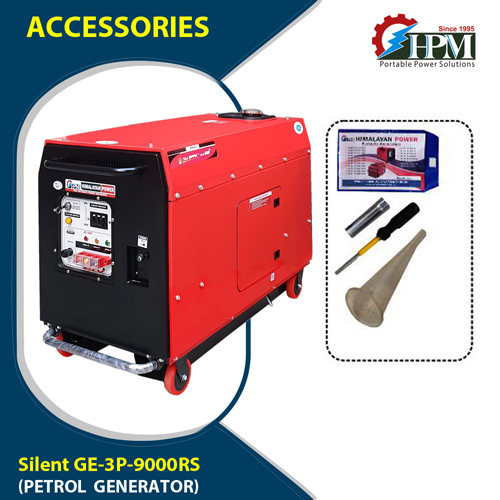

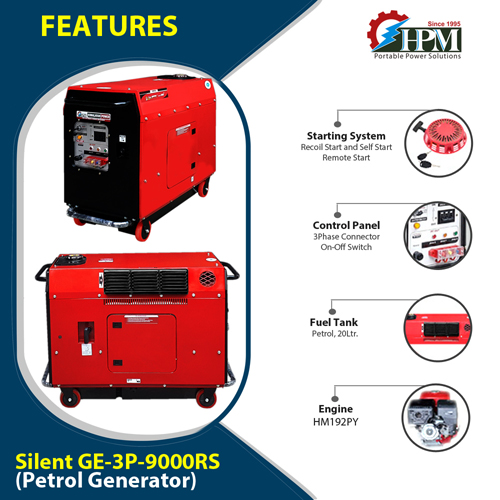

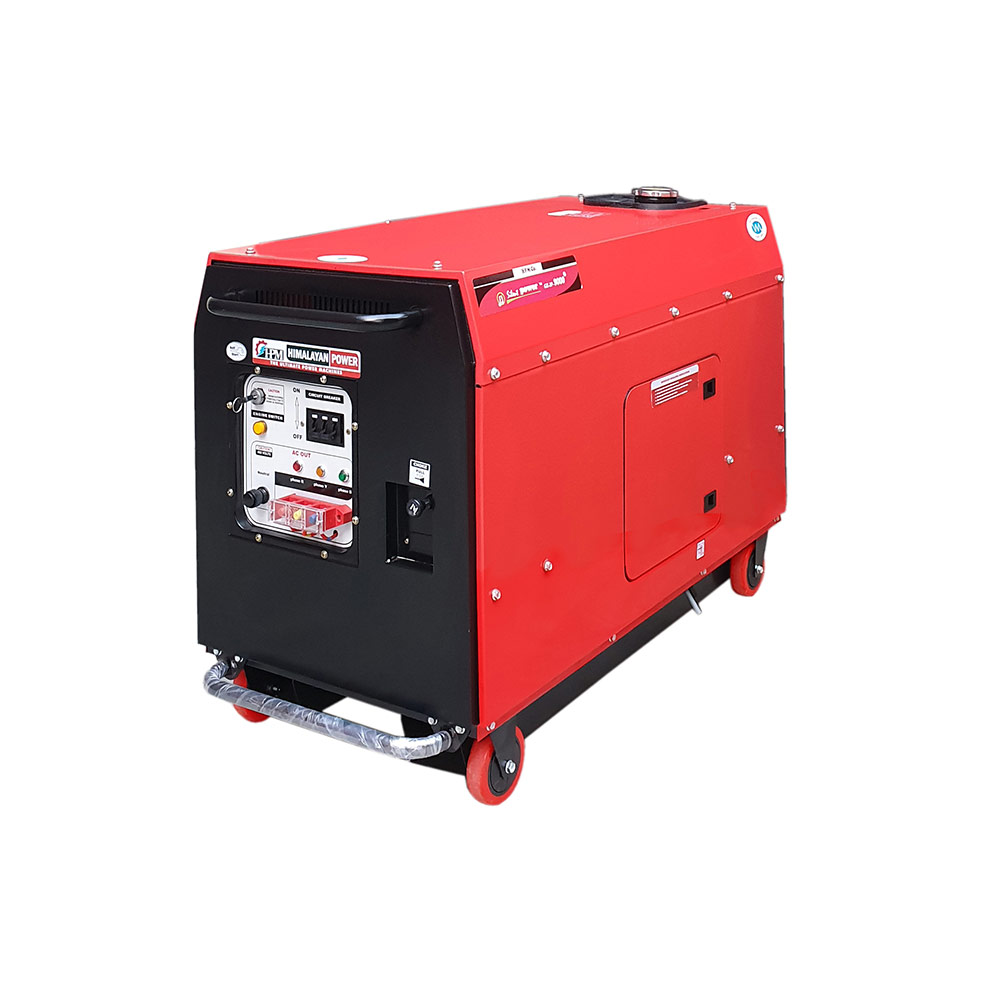

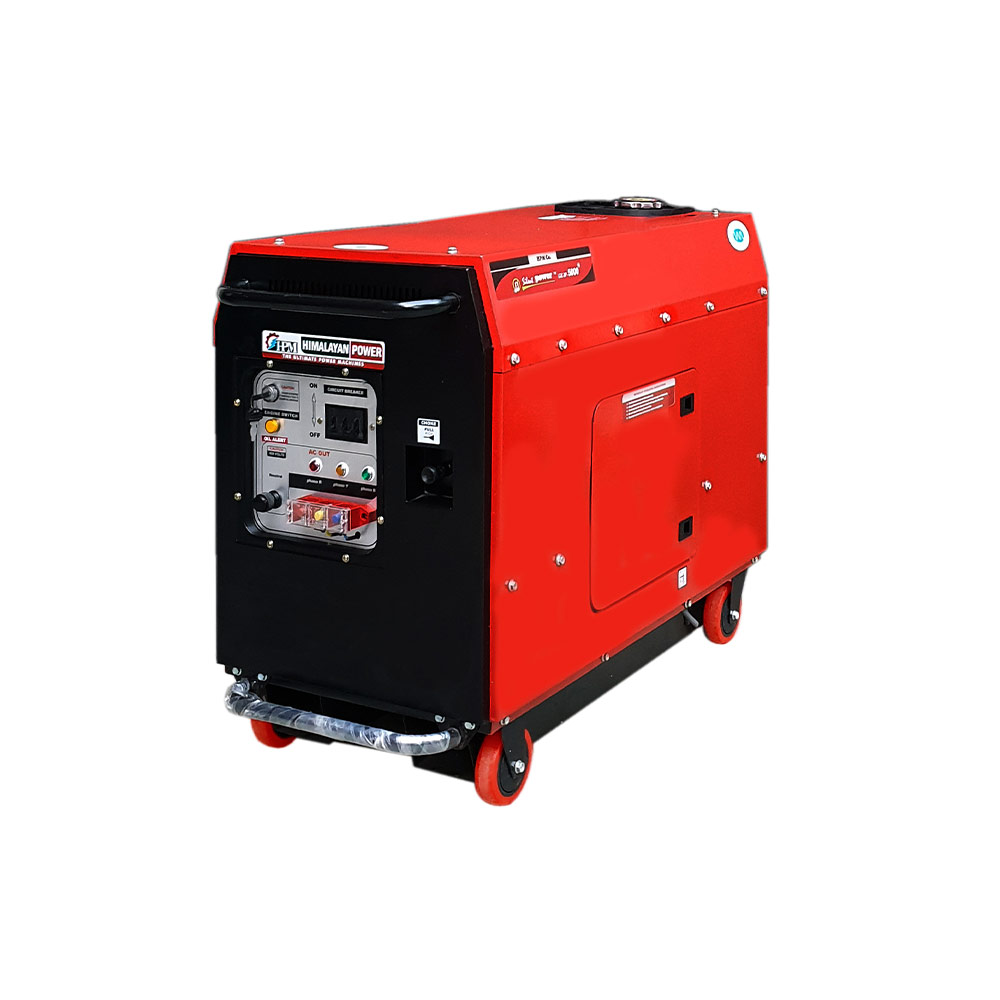

8 KVA Portable Generator- 3 Phase, Petrol Run, Model Silent GE-3P-9000RS, Recoil & Self Start

₹151100 ₹243804

  • *Max AC. Output VA: 8500
  • *Rated AC. Output VA: 7000
  • Rated Current Amps : 9.8 Amp. Per Phase (415 Volts)
  • AC. Voltage  (On Load) : 415 Volts ± 10 Volts, 50 Hz, Three Phase
  • Starting System : Recoil & Self Start
  • Fuel Consumption : Petrol 3.2 Ltr/Hr. Approx / LPG : 800gm /Hr.
  • Run time: 6.5 hr. Approx

Special Highlight :

  • World’s Most Powerful & Most Light Weight 8.5 KVA, 3-Phase Portable Petrol Generator.
  • Very high over loading capacity. Pure sine wave THD<5%, Suitable for sensitive electronic equipment’s.
  • Low Priced & Economical Generator

Application :

  • Can Run Lift / Elevators up to 6 Person, Wind Generator Elevator
  • Most Suitable for running 3 phase load like :Air Compressors, Motors & Machines, Submersible Pump, Deep Freezers, Plasma Cutter,  Industrial Loads.
  • Very suitable for Field Jobs, Constructions sites, Industrial & Commercial Applications, Restaurants. Etc.Can Run Lift / Elevators up to 6 Person, Wind Generator Elevator

This Premium product is the Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is a more than 25-year company that offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • *Max AC. Output VA : 8500
  • *Rated AC. Output VA : 7000
  • Rated Current Amps :9.8 Amps per phase (415 Volts)
  • NFB Amps : 12 Amps. each phase
  • AC. Voltage  (On Load) : 415 Volts ± 5%, 50 Hz, Three Phase

Alternator

  • #Alternator Max. Current Capacity :24 Amps. Per Phase
  • Alternator : Brushless, Rare Earth Magnetic Rotor, THD ≤ 5 %, Pure Sine Wave

Engine

  • Model : HM192PY
  • Maximum Power : 16.0 hp @ 3600rpm
  • Bore x Stroke : 92×67 mm
  • Fuel Tank Capacity :  20 Ltr
  • Type : OHV25°Inclined, Single Cylinder,4 strokes, S.I, Forced Air Cooling
  • Fuel : Petrol
  • Starting System : Recoil Start and Self Start + Remote Start (Optional)
  • Displacement : 445cc
  • Fuel Consumption : Petrol 3.2 ltr/hr,  Approx.
  • Lube. Oil Capacity : 1200 ml.
  • Lubricating Oil Consumption : 4.3 gm./Hr.
  • Sound level (Db) (At 1 meter) : <72Db

Panel & Other Standard Features

  • Oil Alert System : Yes
  • LPG/ Gas Fuel Compatibility : Yes
  • AMF Panel Auto & Remote Start Compatibility : Yes
  • Fuel Level Gauge : Yes
  • Overload Protection (NFB) : Yes
  • Costar Wheels : Yes

Size & Weight

  • Approx. Weight (Kg) : 146 KG
  • Dimension LxWxH (mm) : 990 x 530 x 710
  • Battery Specification: 12 Volt 18 Ah (9+9)

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
