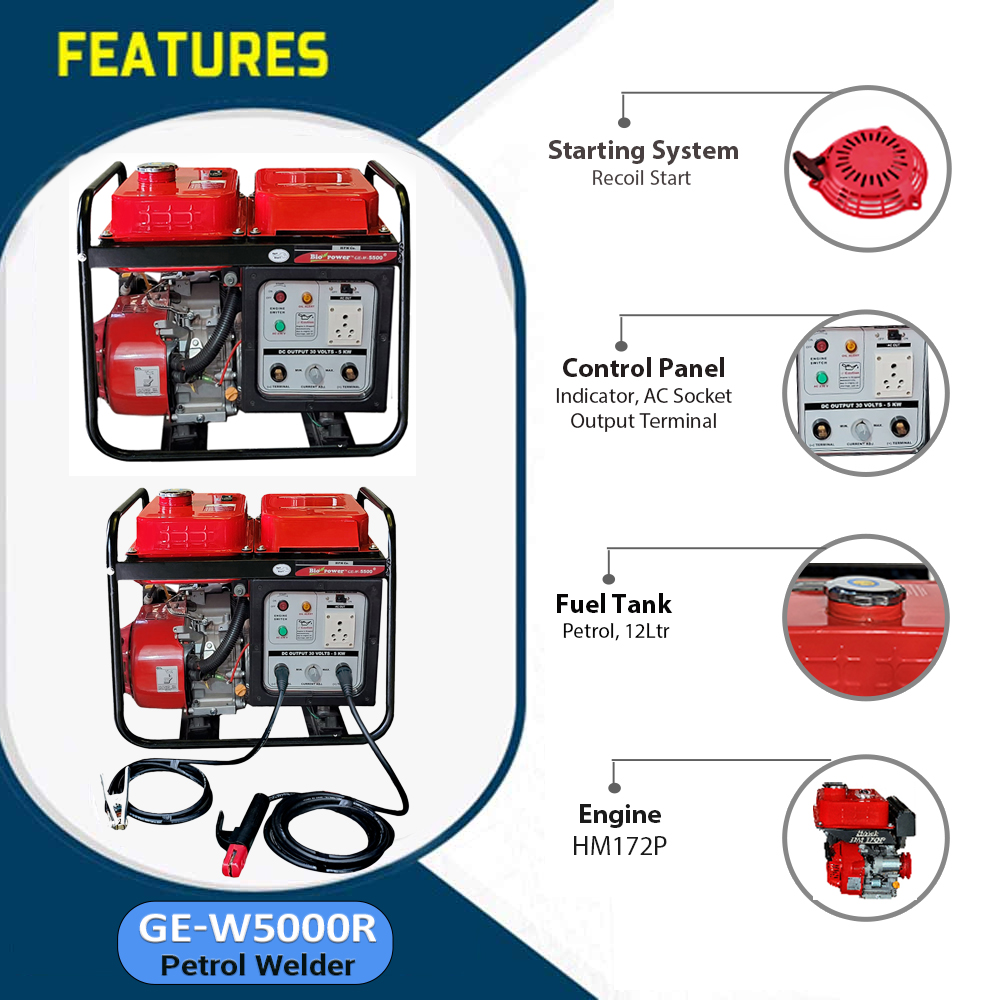

200 Amps Petrol Welding Generator,3 KVA AC Output, Model GE-W5000R, Recoil Start

₹82700 ₹107465

  • Welding Output Current (Duty Cycle60%) : 200Amps.
  • Welding Output Current (Duty Cycle100%): 175Amps.
  • Open Circuit Voltage (OCV): 65 Volt (Minimum)
  • Electrode diameter : 2.6 mm to 4.0 mm
  • Max AC Output (Single Phase) : 2000 VA
  • Starting System : Recoil Start
  • Fuel Consumption Ltr./Hr. : 1 Ltr./hr. (Approx)
  • Continuous Operating Hour : Approx. 12 hr.

Special Highlights & Applications

  • Most Portable & Low Cost but high QualityArc Welding Machine Suitable for all types General Purpose Structural Welding, Light and medium Welding Jobs, Including Pipe Welding Etc. up to 4 mm Electrode
  • In built AC 230 volt – 50 Hz, 2 KVA for AC Appliances

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • Maximum Welding Current : 200 Amps.
  • Rated Welding Output Current (Duty Cycle60%) :175 Amps
  • Working Voltage  : 20v to 32v
  • Open Circuit Voltage (OCV) : 65 Volt (Minimum)
  • Welding Current Regulation (Amps) ​ : 75-175 AMPS
  • Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
  • Maximum Electrode diameter  : 2.6 mm to 4.0 mm

AC GENERATOR

  • Type : Brush less with Rear Earth Magnet Rotor.
  • Alternator Type : Multiphase, Brush less with Rear Earth Magnet Rotor
  • Maximum Power (VA) : 2000 VA
  • Rated Power (VA) : 1800VA
  • Rated Current : 7.5 Amps.
  • NFB Amps : 7.5 Amps.
  • AC. Output Voltage : 220 Volts ±  8%  Volts, Single Phase – 50 Hz
  • Frequency (Adjustable) : 50to60Hz.
  • Class of Insulation : F

​Engine

  • Model : HM170P
  • Type : SingleCylinderAir-cooled;4-stroke,OHV25˚Inclined
  • Maximum Power :6.5HP
  • Bore x Stroke : 70x58
  • Displacement : 223cc
  • Starting System : Recoil Start
  • Ignition System : HM170P
  • Fuel : Standard Petrol
  • Fuel Tank Capacity : 12 Liters
  • Fuel Consumption # Ltr./Hr. : 1.0 Ltr./hr.
  • Continuous Operating Hour : 12 hr.
  • Lube. Oil Capacity : 600 ml.
  • Lubricating Oil Consumption : 2.5 gm./Hr.

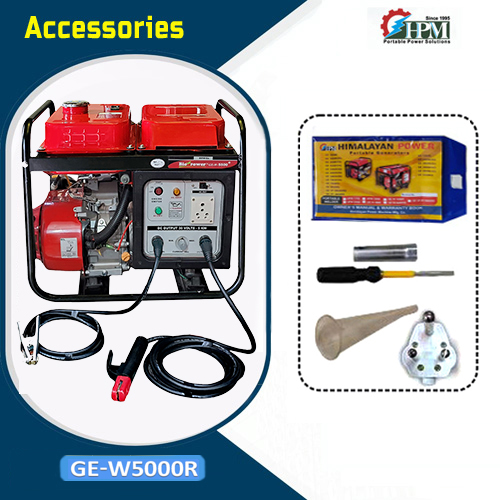

Standard Accessories

  • AC Plug : 1Pec.
  • Tool Kit : 1 Set
  • Welder Holder : 1 Set
  • Earthing Clamp with 3Mtr. Cable : 1 Set
  • Oil Funnel : 1 No
  • Owner’s Manual : 1 No

Optional Accessories

  • Sheet Metal Welding Attachment (Helps to adjust low current upto 50 Amps.): 1 Kit (Additional Cost)
  • Costar Wheels : Optional

Panel & Other Standard Features

  • A.C. Circuit Protector (NFB) : Yes
  • A C. Pilot Lamp​ : Yes
  • Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
  • Fuel Level Gauge: Yes
  • A.C. Output Sockets : Yes (1 Nos.)

Size & Weight

  • Dimension LxWxH (mm) : 600x450x530  mm
  • Dry Weight (Kgs.): 55 Kgs.

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team.  This specification’s can change without any prior intimation

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
