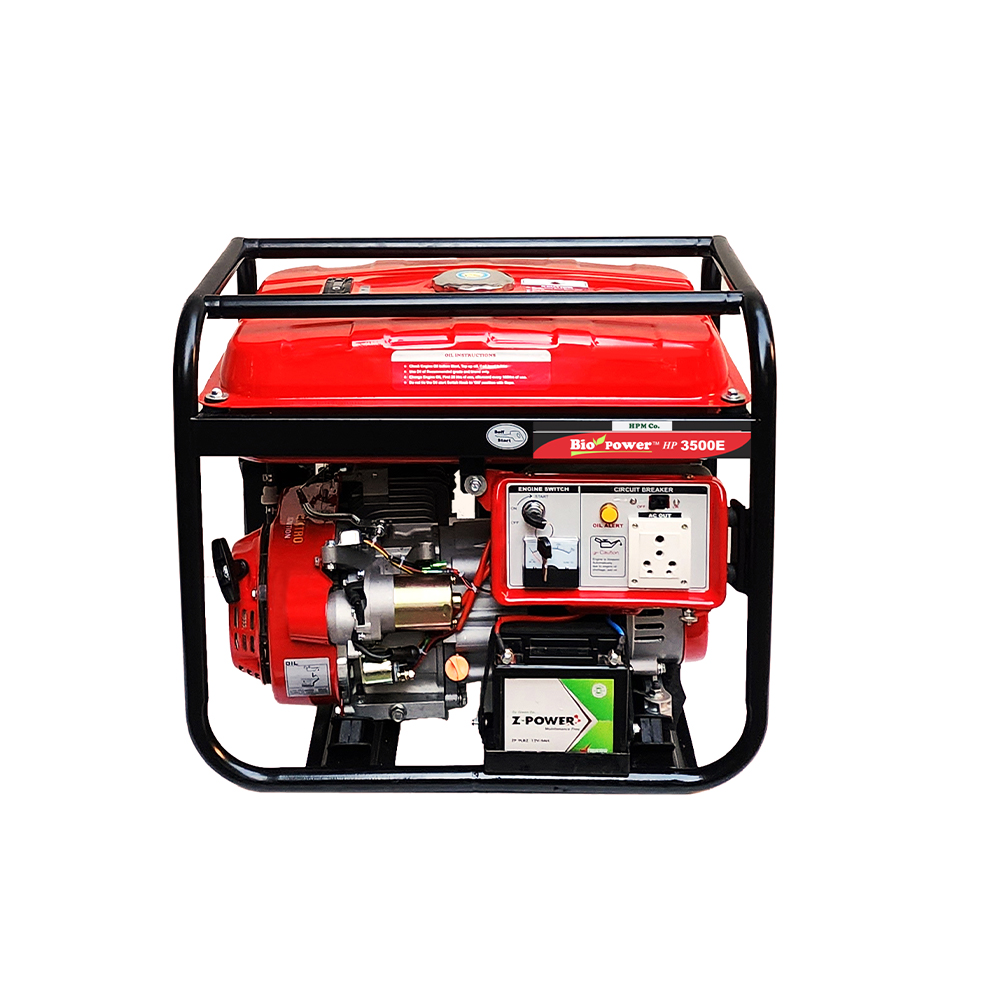

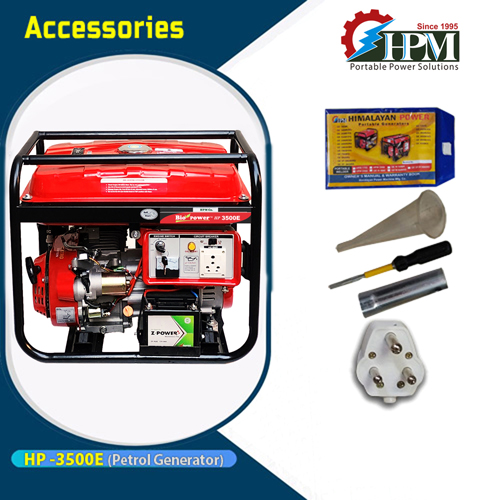

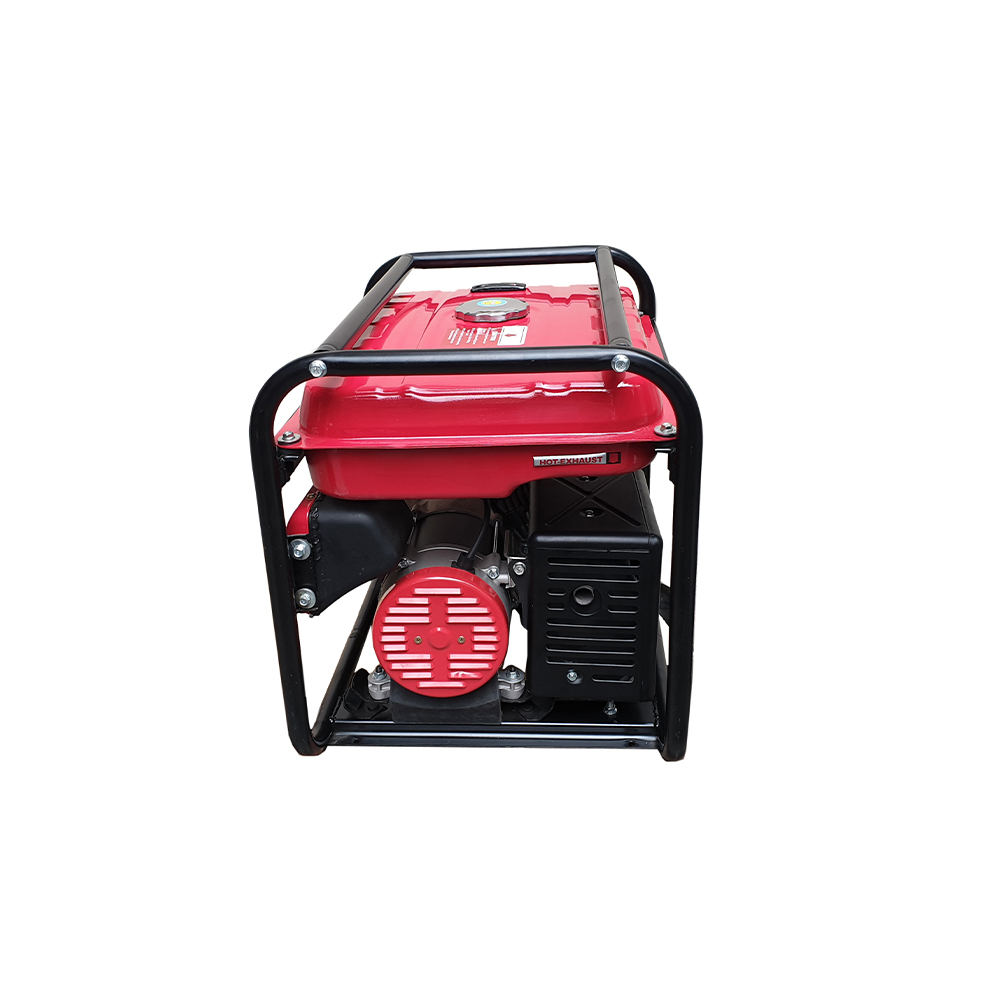

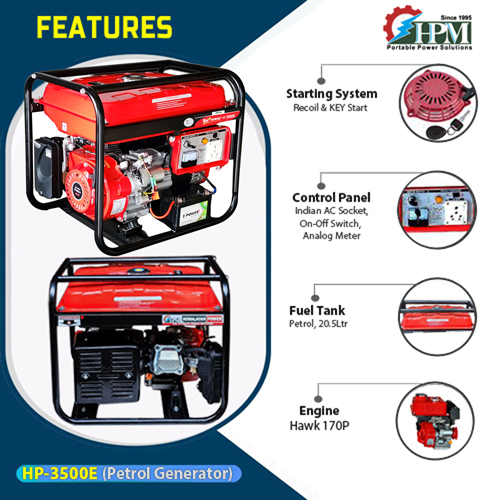

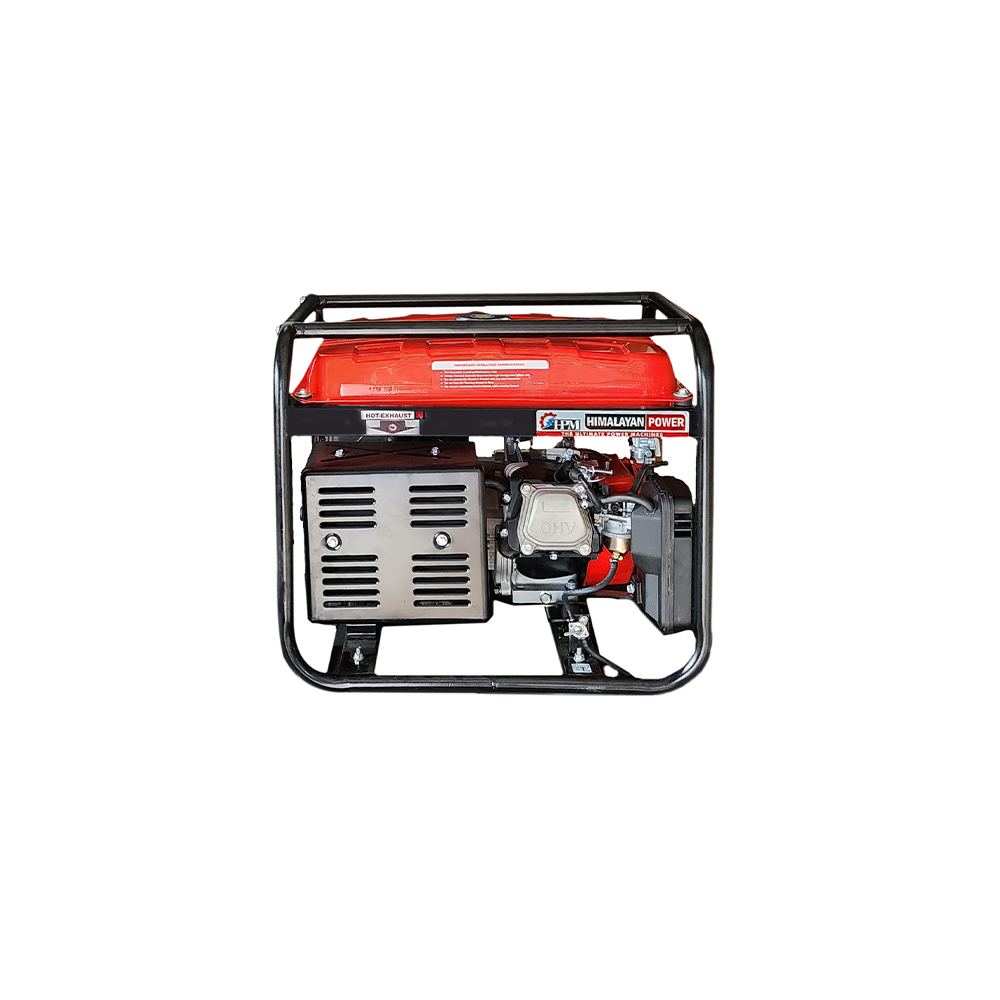

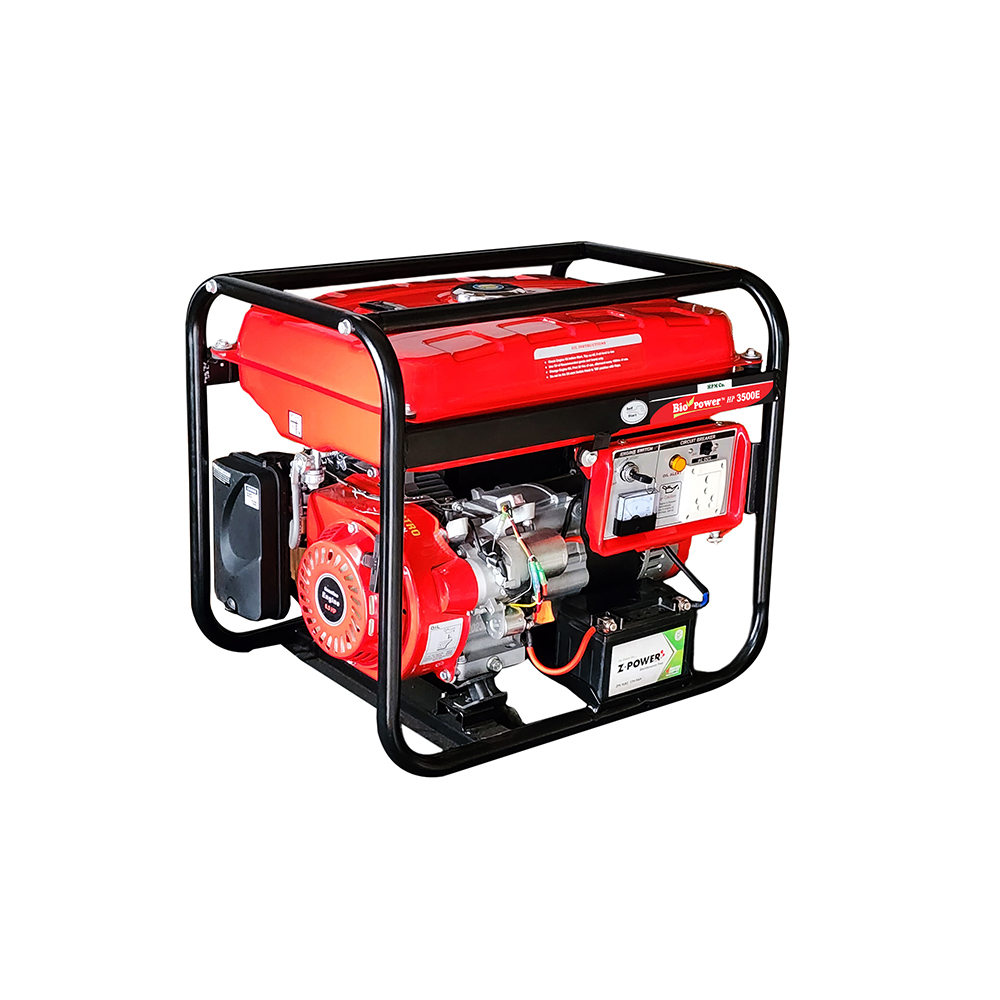

3 KVA Portable Generator, Petrol Run, Recoil & Self Start, Model HP-3500E

₹33300 ₹53735

  • *Max AC. Output VA: 2800
  • *Rated AC. Output VA: 2500
  • Starting System : Recoil & Self Start
  • Run time: 16hr. Approx
  • Fuel Consumption : Petrol 1.3 Ltr/Hr. Approx / LPG : 775gm /Hr.

Special Highlight :

  • 2.8 KVA Genset With Simple Design & Having Low Maintenance & Long Life.

Application :

  • General Purpose Use For Homes, Shops Photo Copier Commercial Use Or Field Jobs For Running Electrical Loads of 2.5 KVA Capacity.

This Premium product is the Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is a more than 25-year company that offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices..

Product Information

  • *Max AC. Output VA : 2800
  • *Rated AC. Output VA : 2500
  • Rated Current Amps : 10.9
  • NFB Amps : 11
  • AC. Voltage at Rated Load : 225 Volts ± 10 Volt 50 Hz, Single Phase
  • AC. Voltage at No Load: 225 Volts ± 10 Volt

Alternator

  • #Alternator Max. Current Capacity : 12 Amps.
  • Alternator : Self-Excitation & Constant Voltage (With AVR), THD = 25%,,

Engine

  • Engine Model : HM170P
  • Type : OHV25°Inclined,Single Cylinder,4 Strokes, S.I, Forced Air Cooling
  • Maximum Power : 6.5 HP @ 3600
  • Bore x Stroke : 70 x 58 mm
  • Displacement : 223cc
  • Starting System : Recoil Start + Self Start
  • Fuel : Petrol + LPG (Optional)
  • Fuel Tank Capacity : Petrol -20.5 Ltr.
  • Fuel Consumption : Petrol 1.3 ltr/hr, Approx. LPG: 775gm./hr.
  • Continues Running (With One Filling) :16 Hrs.
  • Lube. Oil Capacity : 600 ml.
  • Lubricating Oil Consumption : 2.5 gm./Hr.
  • Sound level (Db) (from 1 meter) : <86Db

Panel & Other Standard Features

  • Voltmeter : Yes (Analogue)
  • Digital Hour Meter : No
  • Oil Alert System : Yes
  • LPG/ Gas Fuel Compatibility : Yes (Optional)
  • AMF Panel Auto & Remote Start Compatibility : No
  • Fuel Level Gauge : Yes
  • Overload Protection (NFB) : Yes
  • Costar Wheels : Optional

Size & Weight

  • Approx. Weight (Kg) : 50 KG
  • Dimension LxWxH (mm) : 600 x 445 x 530 mm
  • Battery Dimension in (mm): 12Volt 9 Ah

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
