3.5 KVA Portable Generator, Model GE-4000RS, Petrol Run, Recoil & Self Start

₹63700 ₹102737

  • *Max AC. Output VA: 3500
  • *Rated AC. Output VA: 3200
  • Starting System : Recoil & Self Start
  • Fuel Consumption : Petrol 1.4 Ltr/Hr. Approx / LPG : 775gm /Hr.
  • Run time: 15hr. Approx

Special Highlight :

  • This is a very Light Weight & Powerful 3.5 KVA Portable Petrol Generator.
  • LPG Compatible Inbuilt connections for LPG Kit fitment for running on LPG.
  • Suitable to run 1 Ton Air Conditioners, Submersible Pump, Deep Freezers, Inductive & Motor Loads.
  • Pure sine wave THD<5%, Suitable for sensitive electronic equipment’s.
  • Very high over loading capacity.

Application :

  • The Best for Running Grinders of Rail Track Maintenance.
  • Very much Suitable for Industrial & Commercial due to ability for Overloading.
  • Low Priced & Economical Generator, Best for institutional / Bulk order Supplies.

This Premium product is the Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is a more than 25-year company that offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • *Max AC. Output VA : 3500
  • *Rated AC. Output VA : 3200
  • Rated Current Amps : 14
  • NFB Amps : 14
  • AC. Voltage at Rated Load : 220 Volts ± 10 Volt50 Hz, Single Phase
  • AC. Voltage at No Load: 250 Volts ± 5 Volt

Alternator

  • #Alternator Max. Current Capacity : 16 Amps.
  • Alternator : Brushless, Rare Earth Magnetic Rotor, THD 5 %, Pure Sine Wave

Engine

  • Engine Model : HM170P
  • Type : OHV25°Inclined,single cylinder, 4 strokes, S.I, Forced air cooling
  • Maximum Power : 6.5 HP @ 3600
  • Bore x Stroke : 70 x 58 mm
  • Displacement : 223cc
  • Starting System : Recoil Start & Self Start
  • Fuel : Petrol + LPG (Optional)
  • Fuel Tank Capacity : Petrol -20.5 Ltr.
  • Fuel Consumption : Petrol 1.4 ltr/hr, Approx.,  LPG: 775gm./hr
  • Continues Running (With One Filling) : 15 Hrs.
  • Lube. Oil Capacity : 600 ml.
  • Lubricating Oil Consumption : 2.5 gm./Hr.
  • Sound level (Db) (from 1 meter) : <86Db

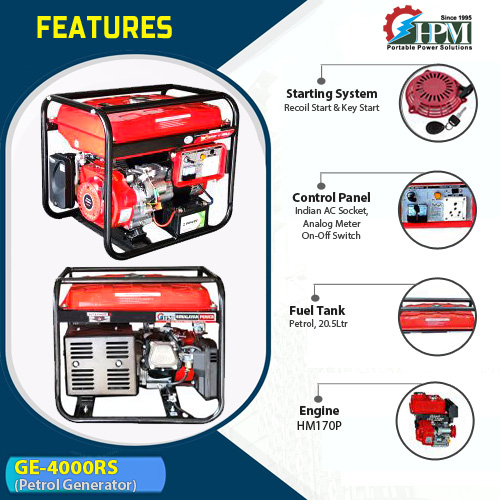

Panel & Other Standard Features

  • Voltmeter : Yes (Analogue)
  • Digital Hour Meter : No
  • Oil Alert System : Yes
  • LPG/ Gas Fuel Compatibility : Yes (Optional)
  • AMF Panel Auto & Remote Start Compatibility : No
  • Fuel Level Gauge : Yes
  • Overload Protection (NFB) : Yes
  • Costar Wheels : Optional

Size & Weight

  • Approx. Weight (Kg) : 50 KG
  • Dimension LxWxH (mm) : 600 x 445 x 530 mm
  • Battery Specification : 12 Volt 9 Ah

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
