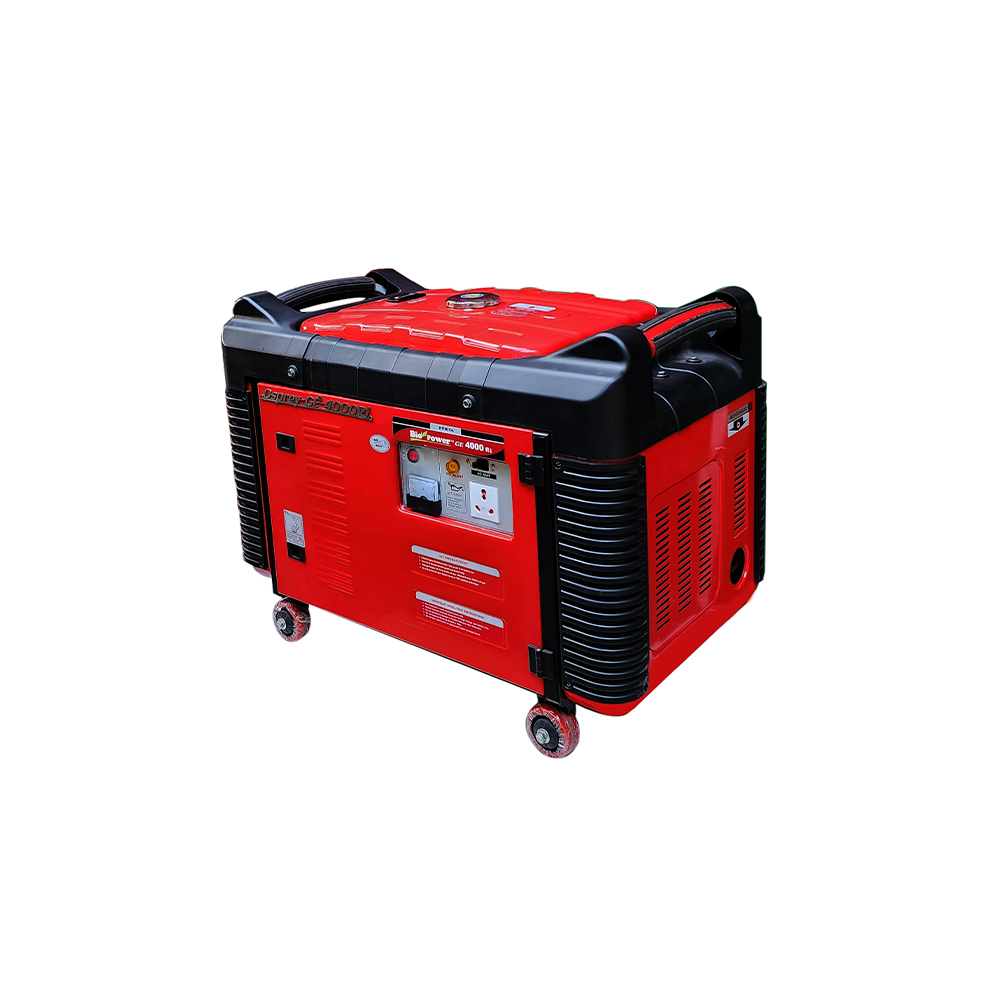

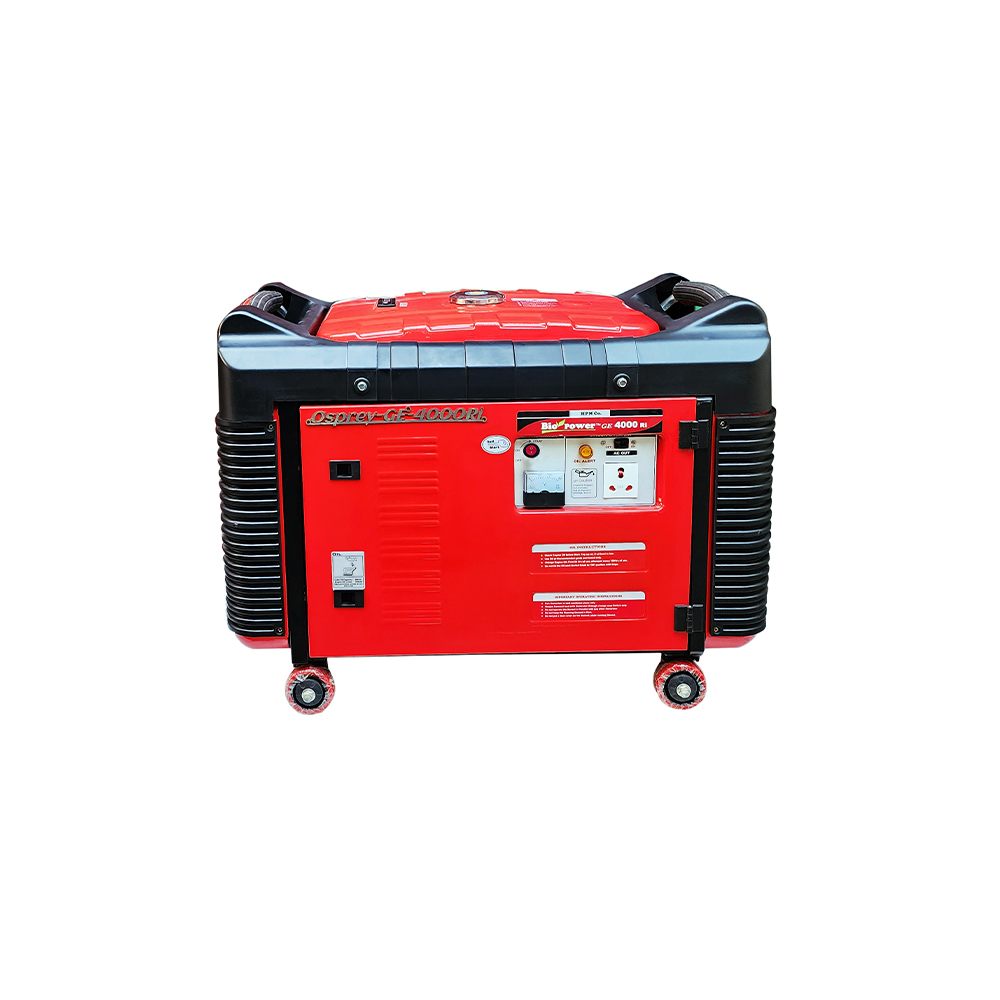

4 KVA Petrol Generator Model Osprey GE-4000Ri, Recoil Start
- *Max AC. Output VA: 3800
- *Rated AC. Output VA: 3500
- Starting System : Recoil Start
- Fuel Consumption : Petrol 1.4Ltr/Hr. Approx / LPG : 775gm /Hr.
- Run time: 14hr. Approx
Special Highlight :
- This is a very Light Weight & Powerful Portable Petrol Generator. Option to run on LPG Fuel available.
- Suitable to run Air Conditioners, Submersible Pump, Deep Freezers, Inductive & Motor Loads.
- Pure sine wave & THD<5%, Suitable for sensitive electronic equipments.
- Ability to withstand high over loading capacity.
Application :
- Very much Suitable for Domestic, Institutional, Field jobs, Industrial & Commercial Use due to ability for Overloading.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- *Max AC. Output VA : 3800
- *Rated AC. Output VA : 3500
- Rated Current Amps : 15.2
- NFB Amps : 15
- AC. Voltage at Rated Load : 220 Volts ± 10 Volt 50 Hz, Single Phase
- AC. Voltage at No Load: 250 Volts ± 5 Volt
Alternator
- #Alternator Max. Current Capacity : 24 Amps.
- Alternator : Brushless, Rare Earth Magnetic Rotor, THD 5 %, Pure Sine Wave
Engine
- Engine Model : HM170P
- Type : OHV25°Inclined,single cylinder, 4 strokes, S.I, Forced air cooling
- Maximum Power : 6.5 HP @ 3600
- Bore x Stroke : 70x58 mm
- Displacement : 223cc
- Starting System : Recoil Start
- Fuel : Petrol + LPG (Optional)
- Fuel Tank Capacity : Petrol - 20.5 Ltr
- Fuel Consumption : Petrol 1.4 ltr/hr, Approx., LPG: 775 gm./hr
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5gm./hr.
- Continues Running (With One Filling) : 14 Hrs.
- Sound level (Db) (from 1 meter) : <72Db

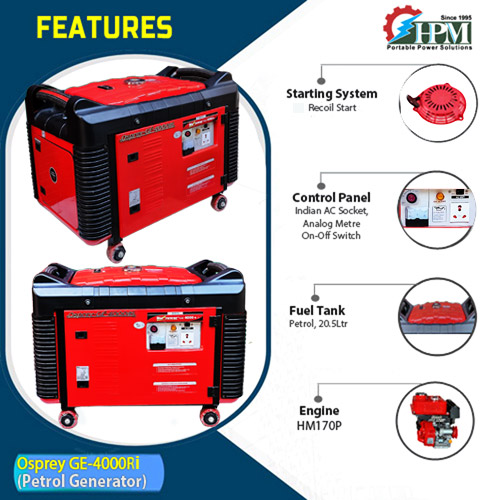

Panel & Other Standard Features
- Voltmeter : Analogue
- Digital Hour Meter : Optional
- Oil Alert System : Yes
- LPG/ Gas Fuel Compatibility : Yes
- AMF Panel Auto & Remote Start Compatibility : Optional
- Fuel Level Gauge : Yes
- Overload Protection (NFB) : Yes
- Costar Wheels : Yes
Size & Weight
- Approx. Weight (Kg) : 67 KG
- Dimension LxWxH (mm) : 785 mm X 520 mm X 608 mm
Warranty
|
Warranty Summary |
|
|
Service Type |
|
|
Covered in Warranty |
|
|
Not Covered in Warranty |
|
