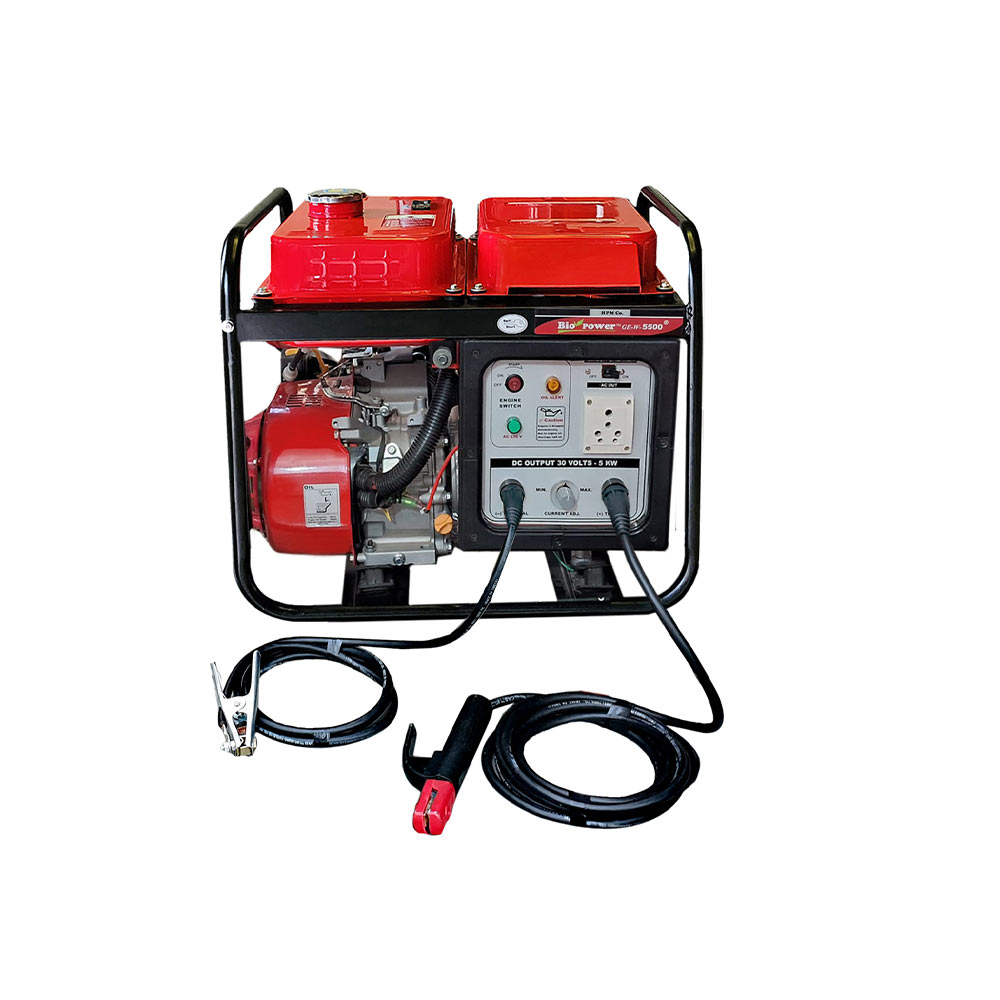

200 Amps Petrol Welding Generator, - 4.5 KW, Model GE-W5500R, Recoil Start

₹92150 ₹119763

  • Welding Output Current (Duty Cycle60%) : 200Amps.
  • Welding Output Current (Duty Cycle100%): 175Amps.
  • Open Circuit Voltage (OCV): 65 Volt (Minimum)
  • Electrode diameter : 2.6 mm to 4.0 mm
  • Max AC Output (Single Phase) : 3000 VA
  • Starting System : Recoil Start
  • Fuel Consumption Ltr./Hr. : 1.1 Ltr./hr. (Approx)
  • Continuous Operating Hour : Approx. 12 hr.

Special Highlights & Applications

  • Most Portable & Low Cost but high QualityArc Welding Machine Suitable for all types General Purpose Structural Welding, Light and medium Welding Jobs, Including Pipe Welding Etc. up to 4 mm Electrode
  • In built AC 230 volt – 50 Hz, 3 KVA for AC Appliances

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • Maximum Welding Current : 200 Amps
  • Rated Welding Output Current (Duty Cycle60%) :  175Amps.
  • WorkingVoltage : 20vto30v
  • OpenCircuit Voltage (OCV)  : 65 Volt (Minimum)
  • Welding CurrentRegulation (Amps) : 75 – 175 AMPS
  • RectifyingMode : SCR,PhaseControlled3-phase,RectifyingBridge
  • MaximumElectrodediameter : 2.6mmto 4.0mm

AC GENERATOR

  • Type : Brushless with Rear Earth Magnet Rotor.
  • Ac Output Power : 3000VA
  • Output Current : 13 Amps.
  • AC. VoltageOn “EcoMode” (at Load) : 220Volts±10 Volts,SinglePhase
  • Frequency (Adjustable) : 50to60Hz.
  • NFB Amps : 13 Amps
  • Classof Insulation : F



Engine

  •  Model : HM170 P
  • Type : SingleCylinderAir-cooled;4-stroke,OHV25˚Inclined
  • Maximum Power : 6.5 HP
  • Bore x Stroke : 70x58 mm
  • Displacement : 223cc
  • Starting System : Recoil Start
  • Ignition System : TCI(TransistorControl Ignition)
  • Fuel : Standard Petrol
  • Fuel Tank Capacity : 12 Liters
  • Fuel Consumption # Ltr./Hr. : 1.1 Ltr./hr.
  • Continuous Operating Hour : 12 hr. Aproxx.
  • Lube. Oil Capacity : 600 ml.
  • Lubricating Oil Consumption : 2.5 gm./Hr.

Standard Accessories

  • AC Plug : 1Pec.
  • Tool Kit : 1 Set
  • Welder Holder With Cable : 1 Set
  • Earthing Clamp with Cable : 1 Set
  • Oil Funnel : 1 No.
  • Owner’s Manual : 1 No.
  • Costar Wheels : Optional

Panel & Other Standard Features

  • A.C. Circuit Protector : Yes
  • A C. Pilot Lamp​ : Yes
  • Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
  • Fuel Level Gauge: Yes
  • A.C. Output Sockets : Yes (1 Nos.)

Size & Weight

  • Dimension LxWxH (mm) : 600x450x530  mm
  • Dry Weight (Kgs.): 55 Kgs.

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team.  This specification’s can change without any prior intimation

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
