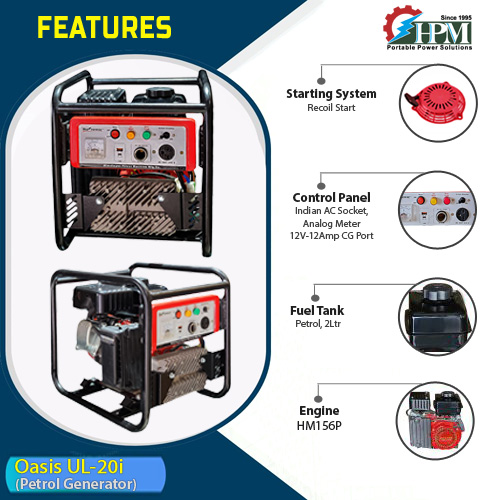

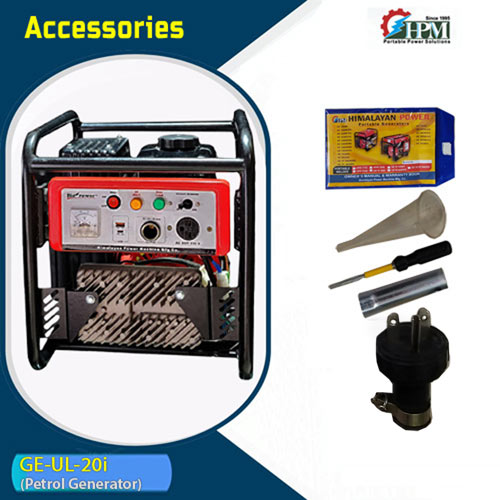

2 KVA Petrol Inverter Generator , Recoil Start, Model Oasis UL-20i

₹38850 ₹62645

  • *Max AC. Output VA: 2000
  • *Rated AC. Output VA: 1600
  • DC Output : 5V-20V DC Panel
  • 12V-12amps CG port
  • QC  : 3.0 USB Port
  • PD  :  3.0 Type C USB
  • Starting System : Recoil Start
  • Fuel Consumption: Petrol 0.60 Ltr./Hr. Approx
  • Run time: 3.3hr. Approx
  • Pure Sine Wave

Special Highlight :

  • World’s Lightest 2 Kva Generator
  • Ultra Light Weight (21Kg Only) Portable Petrol Generator Option to Run On LPG Fuel Available

 Application :

  • Most Useful for Army Posted at Hilly Terrain and Snowy hilly tops. (Soldiers  For Running Office Use, Home Use, For Police, Army / Defense use, Numerous Field Applications, Railway track Maintenance & other Vehicular Applications, Etc.

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • *Max AC. Output VA  :  2000
  • *Rated AC. Output VA  : 1600
  • Rated Current Amps :  6.5
  • NFB Amps  : 6.5
  • Rated AC. Voltage  :  230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
  • #Alternator Max. Current Capacity  : 8  Amps.
  • Alternator  :   Multi pole (7 Pairs), Permanent Magnet Alternator
  • Inverter (2KW)  : High Voltage & High Frequency, Transformer Less, Mosfet Technology

DC Outputs

  •  DC 12 V – 100 Watt, CG Port
  • Continuous Output Current  :  5 A (Max. 60 Watt)
  • DC Output Short-circuit Protection  :   Yes (Disconnect Load Recovery)
  • 12V DC Output Over Load Current Protection :    Yes >8 A (Disconnected Load Recovery)
  • DC Outputs - 5V to 20 V & DC Ports
  • USB Output Fast Charging QC 3.0   :  1* 5V - 12V DC (18W-Max)  5V3A, 9V 2A, 12V 1.5A
  • Type - C USB  :   1* 'C' Type - 1* USB C PD 2.0 (30W)  5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A

Engine

  •  Model  :  HM156P
  • Type  :  OHV25°Inclined,single cylinder, 4 strokes, S.I, Forced air cooling
  • Maximum Power  :   3.0 hp @ 3600rpm
  • Bore x Stroke  :  56×40 mm
  • Displacement  :   98cc
  • Starting System : Recoil Start
  • Fuel    :    Petrol
  • Fuel Tank Capacity   :   Petrol -2 Ltr.
  • Fuel Consumption (at 70% Load)  :   0.60 ltr/hr, (At rated Load)
  • Continues Running (With One Filling) :  3.3 Hrs.
  • Lube. Oil Capacity    :  400 ml.
  • Lubricating Oil Consumption   :  6.5gm./Kw./hr.
  • Sound level (Db)  : <86Db

Panel & Other Standard Features

  • Voltmeter  :  Yes
  • Output Indicator   :    Yes
  • Over Load Indicator  :   Yes
  • Oil Alert System :   Yes
  • LPG/ Gas Fuel Compatibility  :   Optional
  • Overload Protection (NFB)    :  Yes

Packing

  • Approx. Weight  KG : 21 Kg
  • Dimension LxWxH (mm)   :  410x430x408

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation

Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
