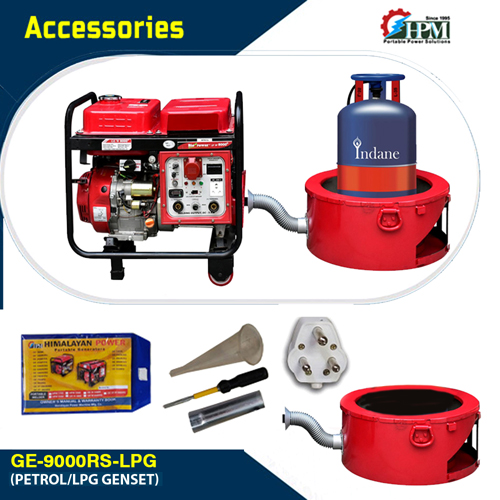

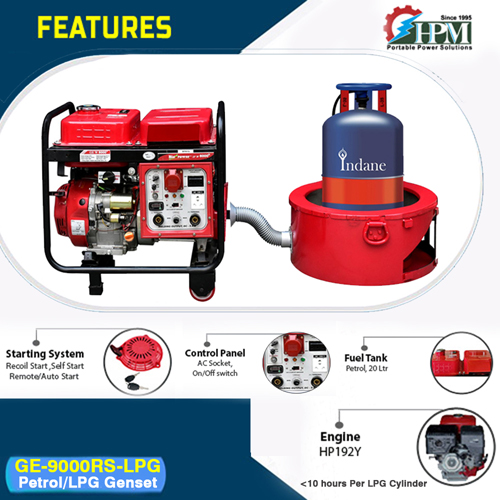

10 KVA Portable Generator, Model GE-9000RS-LPG, Petrol & LPG RUN, Recoil & Self Start
- *Max AC. Output VA: 10000
- *Rated AC. Output VA: 7500
- Starting System : Recoil & Self Start
- Fuel Consumption : Petrol 3.2Ltr./Hr. Approx
- Run time: >5hr. Approx / <10 hours Per LPG Cylinder
Special Highlight :
- World’s Most Powerful & Most Light Weight 8.5 KVA Portable Petrol Generator.
- Runs Two 1.5 ton Air Conditioners & Other Loads.
- Very high over loading capacity. Pure sine wave THD<5%, Suitable for sensitive electronic equipment’s.
- Low Priced & Economical Generator
Application :
- Most Suitable for Construction Machinery, running Air Conditioners, Submersible Pump, Deep Freezers, Inductive & Industrial Loads.
- Very suitable for High End Field Jobs, Constructions sites, Ambulance, Fire Fighting vehicles, OBM Vans, Industrial Applications, Plasma cutting machine 6.5 KVA, Farm Houses.
- Runs , 2- 1.5 Ton Air Conditioners + other load comfortably.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- *Max AC. Output VA : 10000
- *Rated AC. Output VA : 7500
- Rated Current Amps : 33
- NFB Amps : 34
- AC. Voltage at Rated Load :220 Volts ± 10 Volt, 50 Hz, Single Phase
- AC. Voltage at No Load: 250 Volts ± 5 Volt
Alternator
- #Alternator Max. Current Capacity : 48 Amps.
- Alternator : Brushless, Rare Earth Magnetic Rotor, THD 5 %, Pure Sine Wave
Engine
- Engine Model : HM192PY
- Type : OHV25° Inclined, single cylinder, 4 strokes, S.I, Forced air cooling
- Maximum Power : 16 HP @ 3600
- Bore x Stroke : 92x67mm
- Displacement : 445cc
- Starting System : Recoil Start + Self Start +Remote Start
- Fuel : Petrol
- Fuel Tank Capacity : Petrol -15.5 Ltr
- Fuel Consumption : Petrol: 3.2 Ltr./hr.
- Lube. Oil Capacity : 1200 ML
- Lubricating Oil Consumption : 4.3 gm./hr.
- Continues Running (With One Filling) : 5 Hrs. on Petrol or >10 hours Per LPG Cylinder
- Sound level (Db) (from 1 meter) : <86Db
Panel & Other Standard Features
- Voltmeter : Yes (Digital)
- Digital Hour Meter : Yes
- Oil Alert System : Yes
- LPG/ Gas Fuel Compatibility : Yes
- AMF Panel Auto & Remote Start Compatibility : Yes
- Fuel Level Gauge : Yes
- Overload Protection (NFB) : Yes
- Costar Wheels : Yes
Size & Weight
- Approx. Weight (Kg) : 103 Kg
- Dimension LxWxH (mm) : 670 x 510 x 670 mm
- Battery Specification: 12V -13Ah Lithium Iron Phosphate Battery
