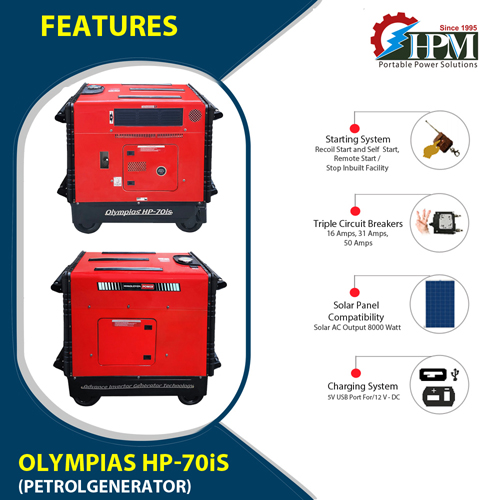

8 KVA Petrol Generator Model Olympias HP-70is, Recoil & Self - Remote Start

₹149600 ₹194409

  • *Max AC. Output VA: 8000
  • *Rated AC. Output VA: 7000
  • Starting System: Recoil & Self-Remote Start
  • Fuel Consumption: Petrol 2.9 Ltr./Hr. / LPG: 750 Gm. Approx.
  • Run time: 7hr. Approx.
  • PD: 3.0 Type C USB
  • Pure Sine Wave
  • Paralleling AC Output: 14 KVA (2 x Olympias HP-70is)
  • Fuel Tank Capacity :- 20 Ltr.

Special Highlight:

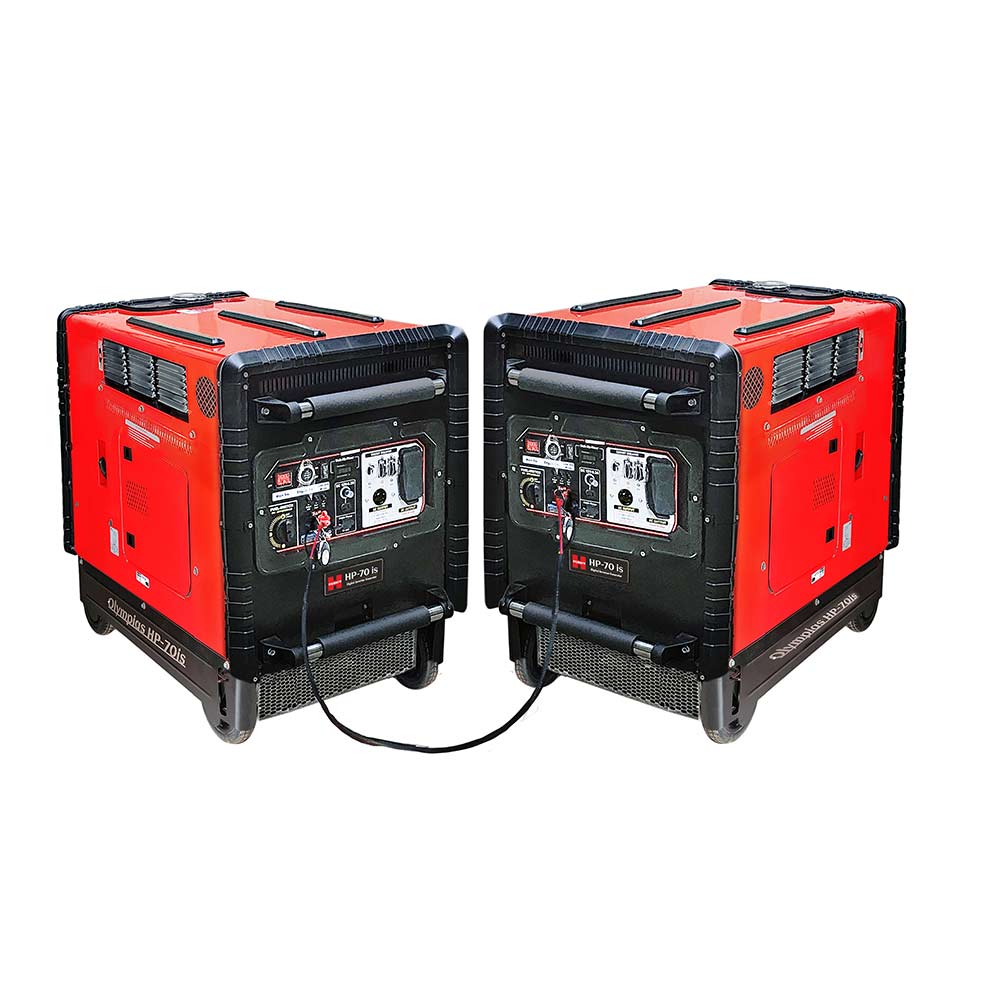

  • This is a Inverter Generator, 2 Or More Generators can be Connected in Parallel to run Much Bigger AC Loads. For Example To Run 15 KVA Load Connect two HP 70 is Genset in Parallel
  • Silent Type Portable Petrol Generator.
  • Powerful 8 KVA Portable Generators, Runs 1.5 / 2 Ton Air Conditioner + Other Loads.

Application :

  • For Running 1.5 / 2 Ton Air Condition, Office Use, Home Use, Small Institution, Computer Center, Nursing Home, School, Cyber Café, Small Banks, ATM, RTV Vans, Ambulances, Food Vans, Vanity Van & other Vehicular Applications, Etc.

This Premium product is the Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is a more than 25-year company that offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Product Information

  • *Max AC. Output VA : 8000
  • *Rated AC. Output VA  : 7000
  • Rated Current Amps : 30.5
  • NFB Amps (3 Units)​  :  16 Amps, 31 Amps, 50 Amps
  • Rated Ac Voltage  :   230 V ± 1%
  • Phase & Frequency : Single Phase, 50 Hz ± 0.1

Alternator

  • #Alternator Max. Current Capacity  : 35 Amps.
  • Alternator  : Multi pole (11 Pairs), Permanent Magnet Alternator
  • Inverter (8KW) :  High Voltage & High Frequency, Transformer Less, IGBT Technology, Paralleling Compatibility

Engine

  •  Model   : HM192PY
  • Type  : OHV25°Inclined, Single Cylinder,4 strokes, S.I, Forced Air Cooling
  • Maximum Power  :  16.0 hp @ 3600rpm
  • Bore x Stroke : 92×67 mm
  • Displacement  :  445 cc
  • Starting System    :  Recoil Start + Self Start & Remote Start
  • Fuel Tank Capacity  :  20 Ltr.
  • Fuel Consumption (at 70% Load) : Petrol 2.9 ltr/hr Approx.
  • Continues Running (With One Filling) : 7 Hrs.
  • Lube. Oil Capacity  : 1200 ml.
  • Lubricating Oil Consumption   : 4.3 gm./Hr.
  • Sound level (Db) (from 1 meter)   : <86 Db

Panel &  Other Standard Features

  • Voltmeter​  :     Digital
  • Digital Hour & Hz Meter​  :  Yes
  • Oil Alert System  :  Yes
  • AMF Panel​ :  Optional
  • Remote Start   :  Yes
  • Fuel Level Gauge    :    Yes
  • Overload Protection (NFB)​  :       Yes
  • Output Indicator ​   :    Yes
  • Paralleling Compatibility :  Yes
  • Paralleling Cable  : Yes (If Purchased 2 Gensets at a time)
  • Costar Wheels :  Yes

Packing

  • Approx. Weight ​:  140.5 Kg
  • Dimension LxWxH (mm)       :  700*565*730 (L×W×H)
  • Battery Specification  :12V - 18 Ah

Recommended Solar Panel Specifications

Connectors

Low Power

Medium Power

High Power

Port A

10S-36V, 100W

10S-36V, 200W

10S-36V, 300W

Port B

10S-36V, 100W

10S-36V, 200W

10S-36V, 300W

Port C

10S-36V, 100W

10S-36V, 200W

10S-36V, 300W

Total Panel (W)

3000 Watt

6000 Watt

9000 Watt

Min. Solar AC Output : 900 Watt

Max. Solar AC Output: 8000 Watt

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation.



Warranty

Warranty Summary

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Service Type

  • Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint

Covered in Warranty

  • *1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier

Not Covered in Warranty

  • NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
