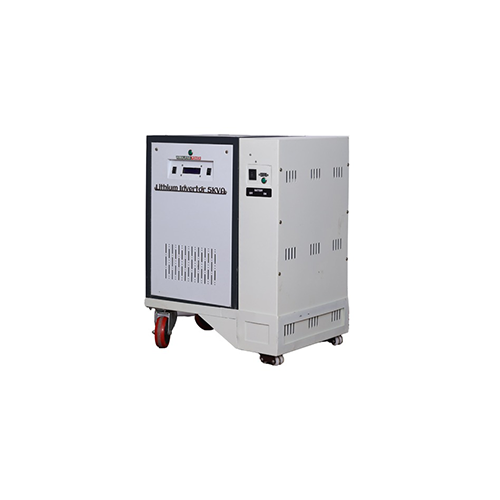

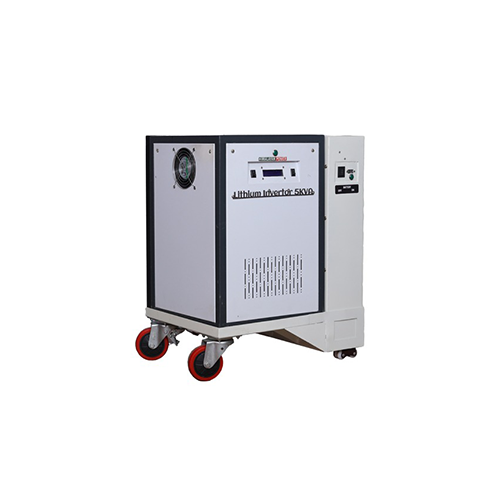

Portable and Compact Lithium Inverter, UPS-5000W
Special Highlight
- This is a Portable and Compact Lithium Inverter, It Runs 1.5 ton AC & Other Load Upto 5 KVA
- Dual Use, AS Inverter Mode & UPS Mode
Application
- Best stuitable for Home use, Shops, Offices, Coaching Centers, Insitutes, Computer Center, Gaming Center, Dental Clinics, Nursing Homes, Salons, Banks, Atms, LED Advertersing Vans, Food Vans, Ambulances, RTV /OBM Vans, Panetry Vans, Submersible Pump, All Computer & UPS Applications, Industrial Use, ETC.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
Battery
Cell Chemistry : LiFePo4 (LFP)
Cell Type : Blade Cell 3.2V-200Ah
Nominal Battery Voltage : Nominal Battery Voltage
Cell Configuration : 16S
Lithium Battery Capacity : 51.2V-200Ah(C) 10.24 KWh & Capacity ©
Life Cycles : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
Shelf Life : Charge Every 3 - 6 Months
AC 230 Volt Output (Invertor AC Output Power)
Maximum AC Output Power : 5000 VA
Rated Voltage & Type : AC - 230 V, 50Hz, Pure Sine Wave
THD : < 3% (Full R Load)
Power Factor : 0.8
Rated Current : 17.3 Amps
Over Load : 110% < Load <120% @ 40 Sec 120% < Load <150% @ 4 Sec
Power Less (No Load & Turned- Off) : < 10W
AC Output Back time @ 70% of rated load (VA) : ≥ 5 Hours
Max. Efficiency (>70% Load) : 85%
AC Output Socket (For Load Connection) : AC Output Socket (For Load Connection)
Control Panel / Charging Input & Other Standard Features
Battery Level / Capacity Indicators : Via LCD Display, Battery Switch On & Inverter Switch Off Position
Function Indicators : Fault Short Circuit Etc. / AC Output Volt / Mains Charging Amps / Load Percentage, Battery Voltage, Mains Voltage, Temprature, Overload, UPS / Inverter Mode
Over Load Buzzer : Yes (Beeps, at the Time of Overloadin)
Mode Selection - (UPS / Inverter) : UPS :-≤ 10 ms (Working Range 190V - 265V) Inverter :≥ 20 ms (Working Range 120V - 275V)
Mains Overload Protection (NFB) : Yes (26 Amps)
Inverter Bypass : Yes (By Rotory Switch)
AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : External 32 Amps EU type AC Socket and Plug Provided for Grid Connection Chraging Rate 20 Amps Charging Time > 10 Hours
Solar Panel Connection / Compatibility : Yes, 2 Pin Input Metal Socket Provided on Control Panel Recommended Minimum Solar Panel : 220Watt - 23V * 3Series
Fast Charging Portable Petrol Engine Charger Himalayan Model : BC-5080A : 50V - 80 Amps (4000 Watt Maximum ) Charging time Approx 2.5 Hr for 80% Charging
Costar Wheels : Yes
Heat Disipation : Twin AC Cooling Fan
IP Rate : IP 55 Protected from Water Spary < 15˚From Vertical
Working Condition
Charge Temperature : 0˚C ~ 45˚C
Operating Usage Temp. : -10˚C ~ 40˚C
Operation Storage Humidity : 5% ~ 90%
Warranty : 5 Year on Battery & 1 Year for Complete Product (Solar Power Station)
Package Contents : 1* UPS-5000W Lithium Inverter , 1* User Manual , 1 Set Solar Pannel 220Watt - 23V * 3Series (Optional)
